The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
Yes, the DF40C-34DP-0.4V(58) connector is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10 Hz to 2 kHz. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your application.
The DF40C-34DP-0.4V(58) connector is rated for operating temperatures between -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's essential to consult the datasheet and Hirose Electric Co Ltd's recommendations for specific environmental conditions to ensure the connector's reliability and performance.
The DF40C-34DP-0.4V(58) connector is rated for a minimum of 20 mating cycles. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions. It's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to determine the connector's suitability for your specific application.
The DF40C-34DP-0.4V(58) connector is designed to be compatible with other Hirose Electric Co Ltd products. However, compatibility with third-party components should be verified through testing and validation to ensure reliable performance and compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF40C-34DP-0.4V(58) Overview

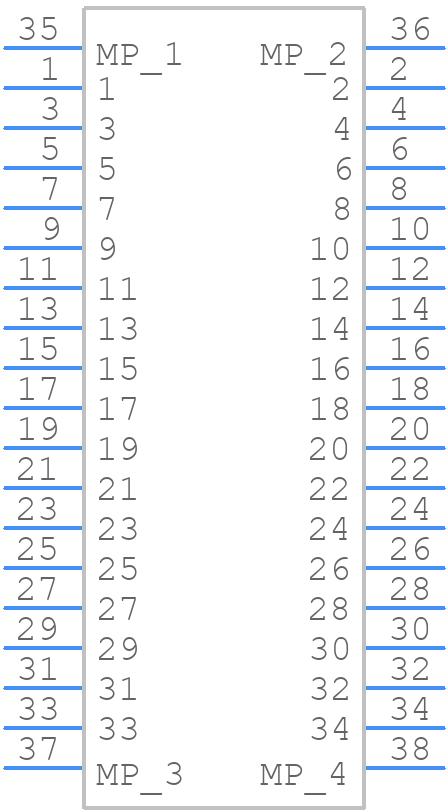

Use the download button to access the DF40C-34DP-0.4V(58) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF40C,
or try a keyword search, such as Headers and Edge Type Connectors
