DF40GB-30DP-0.4V(51) footprint, schematic symbol and 3D model by Hirose

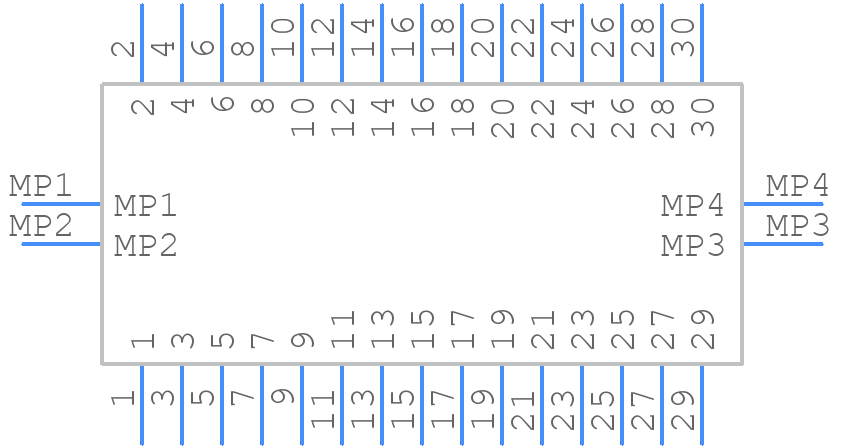

Symbol

click to zoom

PCB Footprints

DF40GB-30DP-0.4V(51) - Hirose PCB footprint - Other - Other - DF40GB-30DP-0.4V(51)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF40GB-30DP-0.4V(51)
Part Number DF40GB-30DP-0.4V(51)
Manufacturer Hirose
Pin Count 34
Part Category Connector
Package Category Other
Footprint Name Other - DF40GB-30DP-0.4V(51)-1
Released Date Apr 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF40GB-30DP-0.4V(51) Details

Manufacturer Part Number:
DF40GB-30DP-0.4V(51)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
8
Connector Type:
BOARD STACKING CONNECTOR

DF40GB-30DP-0.4V(51) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
Yes, the DF40GB-30DP-0.4V(51) is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
The operating temperature range for the DF40GB-30DP-0.4V(51) is -40°C to 105°C, as specified in the datasheet.
Yes, the DF40GB-30DP-0.4V(51) is designed for high-speed data transmission up to 10 Gbps, making it suitable for high-speed applications.
The recommended mating cycle for the DF40GB-30DP-0.4V(51) is 500 cycles, as specified in the Hirose application notes.

Trust Checks

Expert Contribution

System Verified

Community Approved

DF40GB-30DP-0.4V(51) Overview

Use the download button to access the DF40GB-30DP-0.4V(51) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF40G, or try a keyword search, such as Headers and Edge Type Connectors

Suggested Parts

If you searched for DF40GB-30DP-0.4V(51), you might also be interested in these parts:
