DF40GL-44DP-0.4V(51) footprint, schematic symbol and 3D model by Hirose

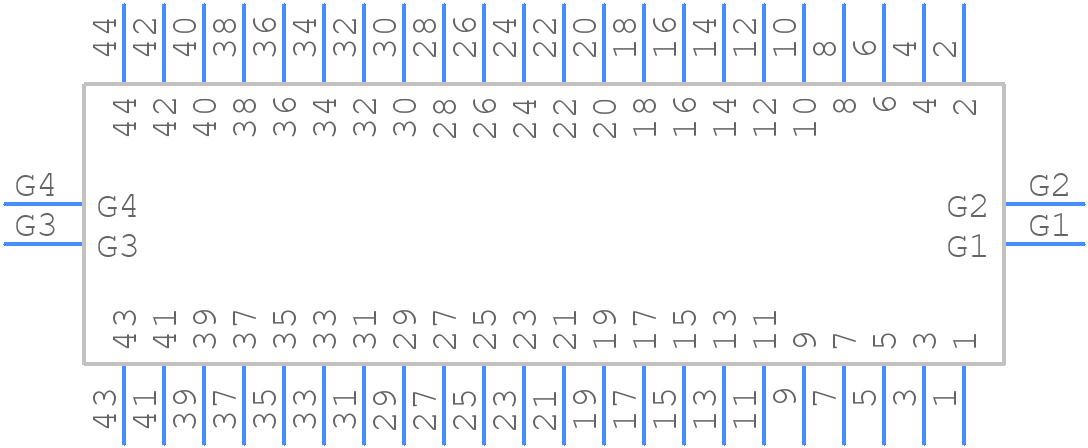

Symbol

click to zoom

PCB Footprints

DF40GL-44DP-0.4V(51) - Hirose PCB footprint - Other - Other - DF40GL-44DP-0.4V(51)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF40GL-44DP-0.4V(51)
Part Number DF40GL-44DP-0.4V(51)
Manufacturer Hirose
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - DF40GL-44DP-0.4V(51)-1
Released Date Sep 14, 2017
Last Modified Date Apr 21, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

DF40GL-44DP-0.4V(51) Details

Manufacturer Part Number:
DF40GL-44DP-0.4V(51)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
8
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.4 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
44
UL Flammability Code:
94V-0

DF40GL-44DP-0.4V(51) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
Yes, the DF40GL-44DP-0.4V(51) is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow the mounting instructions and torque specifications to ensure reliable connections.
The maximum operating temperature for the DF40GL-44DP-0.4V(51) is 125°C, as specified in the datasheet.
Yes, the DF40GL-44DP-0.4V(51) is designed to be used in harsh environments, including outdoors and in humid conditions, but it's recommended to follow the recommended sealing and protection guidelines to ensure reliable operation.
The recommended wire size for the DF40GL-44DP-0.4V(51) is AWG 30 to AWG 38, and the recommended wire type is a stranded copper wire with a insulation diameter of 0.4 mm to 0.6 mm.

Trust Checks

Community Provided

System Verified

Community Approved

DF40GL-44DP-0.4V(51) Overview

Use the download button to access the DF40GL-44DP-0.4V(51) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF40G, or try a keyword search, such as Headers and Edge Type Connectors
