DF51A-26DP-2DSA - Hirose

Description: HIROSE(HRS) - DF51A-26DP-2DSA - Wire-To-Board Connector, 2 mm, 52 Contacts, Header, SignalBee DF51 Series, Through Hole, 2 Rows

Download DF51A-26DP-2DSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

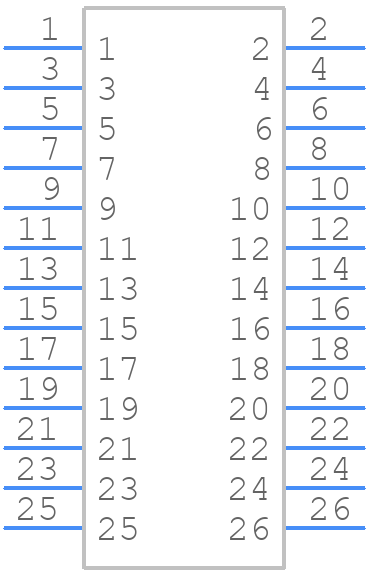

DF51A-26DP-2DSA - Hirose - PCB symbol
click to zoom
PCB Footprints

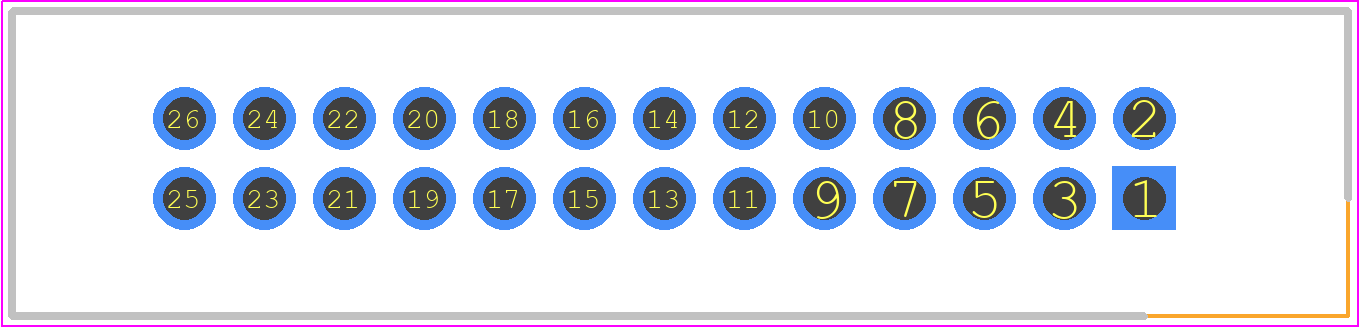

DF51A-26DP-2DSA - Hirose PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - DF51A-26DP-2DSA
click to zoom
3D Models
DF51A-26DP-2DSA - Hirose - 3D model - Header, Receptacle - Straight PTH Box - DF51A-26DP-2DSA
click to zoom

DF51A-26DP-2DSA Details

  • Manufacturer Part Number:

    DF51A-26DP-2DSA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    DF51-26DS-2C

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

DF51A-26DP-2DSA Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections, make sure to follow the recommended mating and unmating forces, and keep the connector clean and free of contaminants. Also, use the recommended torque for the screw locks.
  • The maximum operating temperature for the DF51A-26DP-2DSA connector is 125°C, but it's recommended to derate the current capacity at higher temperatures to ensure reliable operation.
  • Yes, the DF51A-26DP-2DSA connector is designed to withstand vibrations up to 10G (10Hz to 2000Hz). However, it's recommended to perform additional testing and validation for specific vibration profiles.
  • The recommended cable assembly process involves using a wire stripping tool to strip the insulation, followed by crimping the wires to the connector pins. It's essential to follow the manufacturer's guidelines and use the recommended tools to ensure reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF51A-26DP-2DSA Overview

Use the download button to access the DF51A-26DP-2DSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF51A, or try a keyword search, such as Headers and Edge Type Connectors
