DF5A-12DP-5DSA(35) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

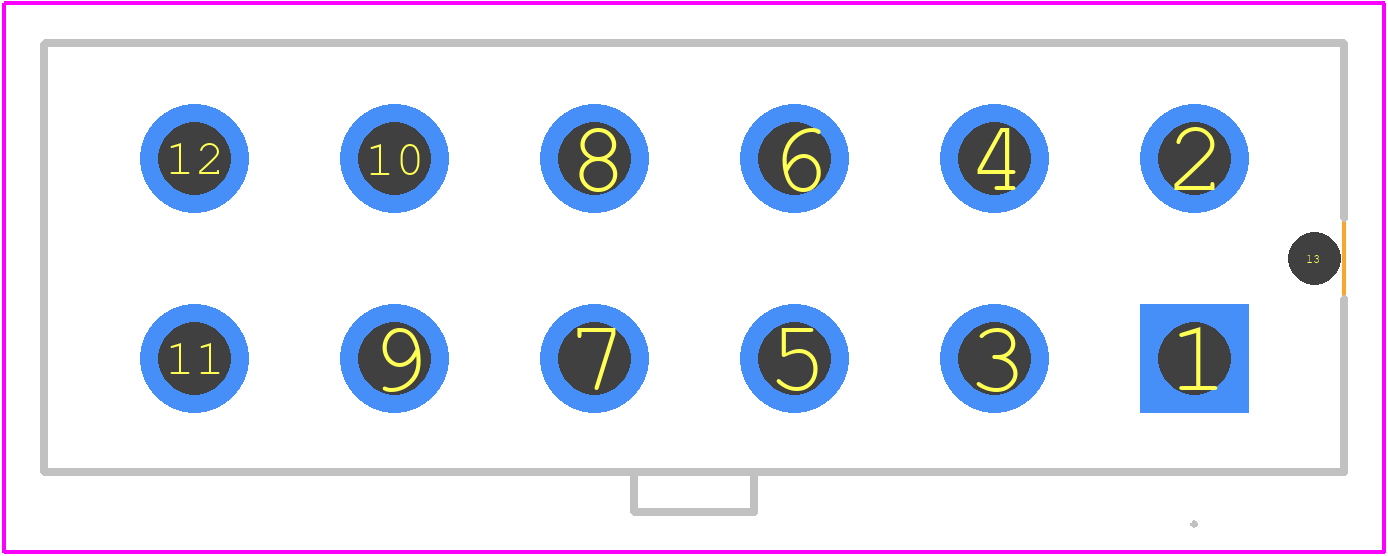

DF5A-12DP-5DSA(35) - Hirose PCB footprint - Other - Other - DF5A-12DP-5DSA(35)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF5A-12DP-5DSA(35)
Part Number DF5A-12DP-5DSA(35)
Manufacturer Hirose
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - DF5A-12DP-5DSA(35)-2
Released Date Feb 7, 2025
Last Modified Date Feb 7, 2025 1:41 PM UTC
Pinout / Pin List Click Here (Member Only)

DF5A-12DP-5DSA(35) Details

Manufacturer Part Number:
DF5A-12DP-5DSA(35)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
6.9
Connector Type:
RECTANGULAR POWER CONNECTOR

DF5A-12DP-5DSA(35) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in).
Yes, the DF5A-12DP-5DSA(35) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.
Yes, the connector is sealed to IP67 standards, making it suitable for outdoor use and resistant to dust and water ingress.
The operating temperature range for the DF5A-12DP-5DSA(35) is -40°C to 105°C (-40°F to 221°F).
The connector is rated for a maximum current of 3 A per contact. For high-current applications, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer.

Trust Checks

Community Provided

System Verified

Community Approved

DF5A-12DP-5DSA(35) Overview

Use the download button to access the DF5A-12DP-5DSA(35) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF5A-, or try a keyword search, such as Headers and Edge Type Connectors
