DF5A-6DP-5DSA(35) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

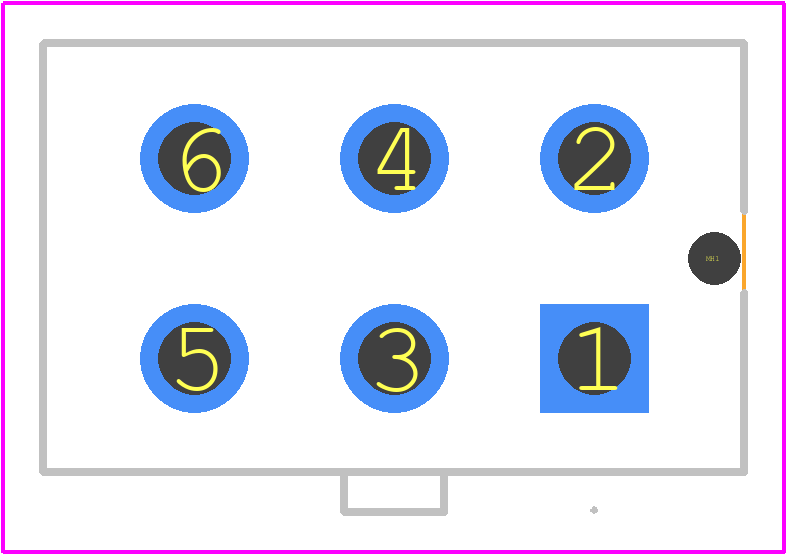

PCB Footprints

DF5A-6DP-5DSA(35) - Hirose PCB footprint - Other - Other - DF5A-6DP-5DSA(35)-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF5A-6DP-5DSA(35)
Part Number DF5A-6DP-5DSA(35)
Manufacturer Hirose
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - DF5A-6DP-5DSA(35)-5
Released Date Oct 1, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF5A-6DP-5DSA(35) Details

Manufacturer Part Number:
DF5A-6DP-5DSA(35)
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Country Of Origin:
Japan
ECCN Code:
EAR99
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
2

DF5A-6DP-5DSA(35) Frequently Asked Questions (FAQs)

The recommended mating cycle for the DF5A-6DP-5DSA(35) connector is 500 cycles.
Yes, the DF5A-6DP-5DSA(35) connector is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10G.
The operating temperature range for the DF5A-6DP-5DSA(35) connector is -40°C to 105°C.
Yes, the DF5A-6DP-5DSA(35) connector is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
The recommended torque for the DF5A-6DP-5DSA(35) connector's screw locks is 0.5 N·m to 1.5 N·m.
