A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to the Toshiba application note for detailed guidelines.
Implement a proper heat sink design, ensure good airflow, and consider using a thermal interface material (TIM) to reduce thermal resistance. Also, follow the recommended derating guidelines for high-temperature operation.
Handle the device with an anti-static wrist strap or mat, and store it in an anti-static bag. The device has built-in ESD protection, but it's still important to follow standard ESD handling procedures to prevent damage.
Yes, the DF5A5.6JE,LM is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and derating guidelines for these applications.
Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 60s max, and 3°C/s max temperature gradient. Use a solder with a melting point above 217°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF5A5.6JE,LM Overview

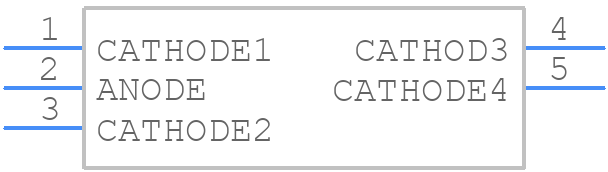

Use the download button to access the DF5A5.6JE,LM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF5A5,
or try a keyword search, such as Zener Diodes
