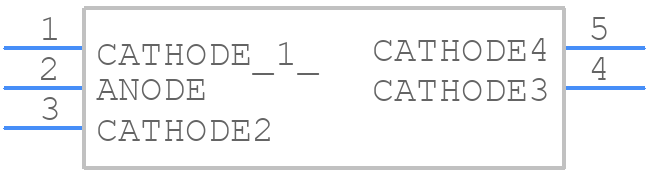

DF5A6.2CJE,LM - Toshiba

Description: Clamp Ipp Tvs Diode Surface Mount ESV , p:100 mw ,Tj: 150 °C ,SOT-553 ,.6×1.6×0.55 .

Download DF5A6.2CJE,LM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DF5A6.2CJE,LM - Toshiba PCB footprint - Other - Other - SOT-553-2025
click to zoom
3D Models
DF5A6.2CJE,LM - Toshiba  - 3D model - Other - SOT-553-2025
click to zoom

DF5A6.2CJE,LM Details

  • Manufacturer Part Number:

    DF5A6.2CJE,LM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Max:

    6.6 V

  • Breakdown Voltage-Min:

    5.8 V

  • Breakdown Voltage-Nom:

    6.2 V

  • Configuration:

    COMMON ANODE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-F5

  • Number of Elements:

    4

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.1 W

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    2.5 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED
