DF5A6.8F,LF - Toshiba

Description: ESD Suppressors / TVS Diodes ESD Standard Type Protection Diode, SOT-25, Vz 7.2V max, Iz=5mA

Download DF5A6.8F,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

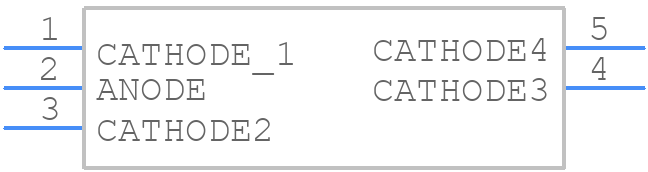

Symbol
DF5A6.8F,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
DF5A6.8F,LF - Toshiba PCB footprint - Other - Other - 1-3H1A
click to zoom
3D Models
DF5A6.8F,LF - Toshiba - 3D model - Other - 1-3H1A
click to zoom

DF5A6.8F,LF Details

  • Manufacturer Part Number:

    DF5A6.8F,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • Breakdown Voltage-Max:

    7.2 V

  • Breakdown Voltage-Min:

    6.4 V

  • Breakdown Voltage-Nom:

    6.8 V

  • Configuration:

    COMMON ANODE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G5

  • Number of Elements:

    4

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.2 W

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

DF5A6.8F,LF Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to the Toshiba application note for more details.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a decoupling capacitor are recommended to minimize noise and voltage fluctuations.
  • The maximum power dissipation is dependent on the ambient temperature and the thermal resistance of the device. Refer to the datasheet for the power dissipation curve and thermal resistance values.
  • The DF5A6.8F,LF is an industrial-grade device, but it's not specifically designed for high-reliability or automotive applications. For such applications, consider using a device with a higher qualification grade, such as AEC-Q100 or MIL-STD-883.
  • Handle the device with care to prevent mechanical stress, electrostatic discharge, and moisture damage. Store the device in its original packaging or an equivalent ESD-protective package, and follow the recommended storage conditions.
