Part Image

DF5A6.8JE,LM - Toshiba

Description: ESD Suppressors / TVS Diodes ESD 4 Circuit 45pF 0.5uA 6.8V

Download DF5A6.8JE,LM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

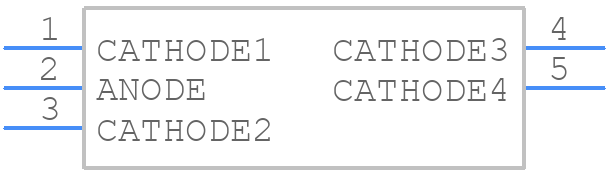

Symbol
DF5A6.8JE,LM - Toshiba - PCB symbol
click to zoom
PCB Footprints
DF5A6.8JE,LM - Toshiba PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - N581-499
click to zoom
3D Models
DF5A6.8JE,LM - Toshiba - 3D model - SO Transistor Flat Lead - N581-499
click to zoom

DF5A6.8JE,LM Details

  • Manufacturer Part Number:

    DF5A6.8JE,LM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Toshiba America Electronic Components

  • Breakdown Voltage-Max:

    7.2 V

  • Breakdown Voltage-Min:

    6.4 V

  • Breakdown Voltage-Nom:

    6.8 V

  • Configuration:

    COMMON ANODE, 4 ELEMENTS, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-F5

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.1 W

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

DF5A6.8JE,LM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DF5A6.8JE,LM is -40°C to 125°C.
  • To ensure reliability, it's essential to follow the recommended derating guidelines, provide adequate heat sinking, and ensure proper thermal management.
  • The maximum allowable power dissipation for the DF5A6.8JE,LM is 2.5W. Exceeding this limit can lead to device failure.
  • Yes, the DF5A6.8JE,LM is suitable for high-frequency switching applications up to 1MHz. However, it's essential to consider the device's switching characteristics and ensure proper layout and design to minimize parasitic inductance and capacitance.
  • To prevent ESD damage, handle the DF5A6.8JE,LM with anti-static wrist straps, mats, or other ESD-protective equipment. Ensure that the assembly process and storage environments are ESD-safe.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF5A6.8JE,LM Overview

Use the download button to access the DF5A6.8JE,LM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF5A6, or try a keyword search, such as Transient Suppressors
