- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DF62-24P-2.2DS
- Part Number DF62-24P-2.2DS
- Manufacturer Hirose
- Pin Count 25
- Part Category Connector
- Package Category Other

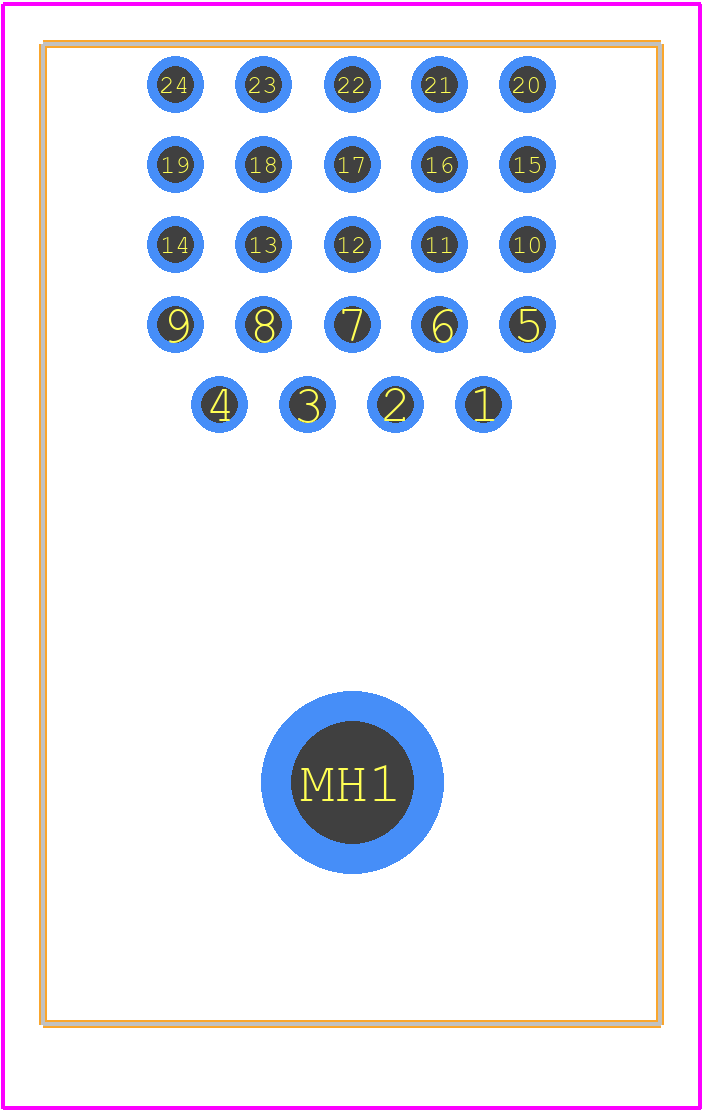

- Footprint Name Other - DF62-24P-2.2DS-1
- Released Date Feb 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DF62-24P-2.2DS Details
-
Manufacturer Part Number:
DF62-24P-2.2DS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
COMBINATION LINE CONNECTOR
DF62-24P-2.2DS Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the DF62-24P-2.2DS connector is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
-
Yes, the DF62-24P-2.2DS connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
-
Yes, the DF62-24P-2.2DS connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and a humidity range of 90% RH or less.
-
The mating cycle life of the DF62-24P-2.2DS connector is 500 cycles minimum.
-
Yes, the DF62-24P-2.2DS connector is RoHS and REACH compliant, meeting the requirements of EU directives 2011/65/EU and (EC) No 1907/2006.
Trust Checks
Expert Contribution
System Verified
Community Approved
DF62-24P-2.2DS Overview

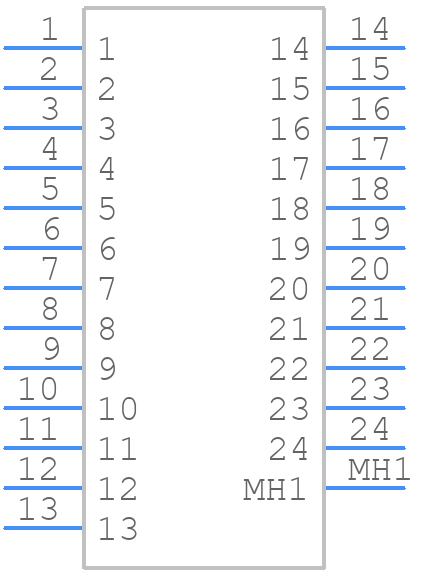

Use the download button to access the DF62-24P-2.2DS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF62-,
or try a keyword search, such as Combination Line Connectors
