- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DF62-24P-2.2DSA
- Part Number DF62-24P-2.2DSA
- Manufacturer Hirose
- Pin Count 24
- Part Category Connector
- Package Category Other

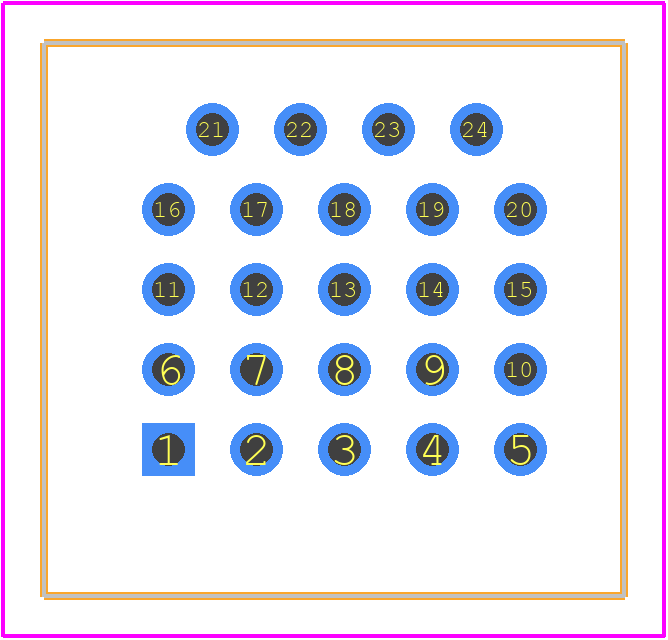

- Footprint Name Other - DF62-24P-2.2DSA-2
- Released Date Nov 25, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DF62-24P-2.2DSA Details
-
Manufacturer Part Number:
DF62-24P-2.2DSA
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
41 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
COMBINATION LINE CONNECTOR
DF62-24P-2.2DSA Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the DF62-24P-2.2DSA connector is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
-
Yes, the DF62-24P-2.2DSA connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
-
Yes, the DF62-24P-2.2DSA connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and a humidity range of 90% RH or less.
-
The mating cycle life of the DF62-24P-2.2DSA connector is 500 cycles minimum.
-
Yes, the DF62-24P-2.2DSA connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances in electrical and electronic equipment.
Trust Checks
Expert Contribution
System Verified
Community Approved
DF62-24P-2.2DSA Overview
Use the download button to access the DF62-24P-2.2DSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF62-,
or try a keyword search, such as Combination Line Connectors
