- Part Number DF63-5P-3.96DS(01)
- Manufacturer Hirose
- Pin Count 5
- Part Category Connector
- Package Category Other

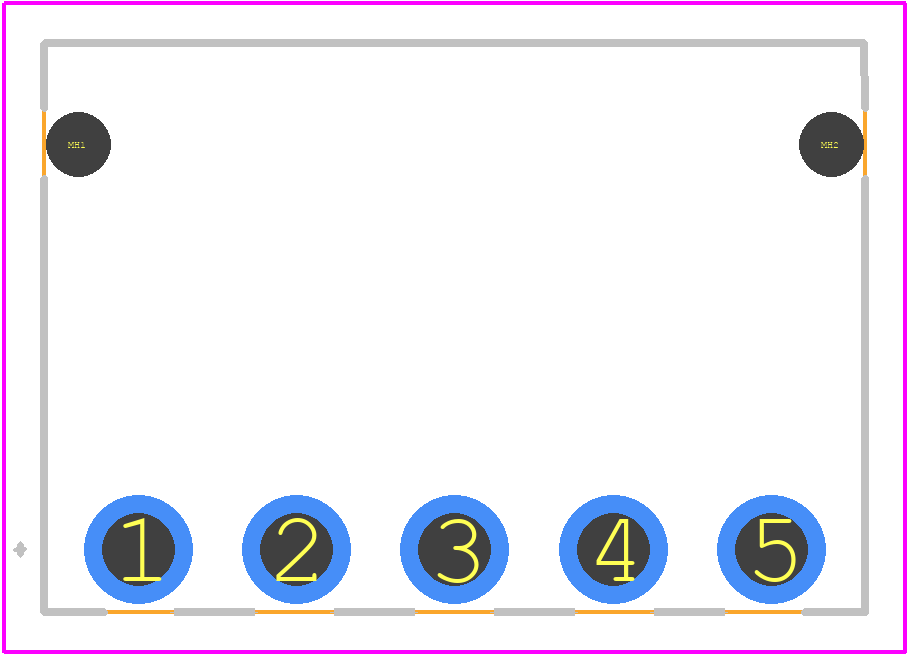

- Footprint Name Other - DF63-5P-3.96DS(01)-2
- Released Date Jul 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DF63-5P-3.96DS(01) Details
-
Manufacturer Part Number:
DF63-5P-3.96DS(01)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Connector Type:
RECTANGULAR POWER CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Gold (Au)
-
Contact Material:
NOT SPECIFIED
Trust Checks
Community Provided
System Verified
Community Approved
DF63-5P-3.96DS(01) Overview
Use the download button to access the DF63-5P-3.96DS(01) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF63-,
or try a keyword search, such as Power Connectors
