- Part Number DF63-5P-3.96DS
- Manufacturer Hirose
- Pin Count 7
- Part Category Connector
- Package Category Other

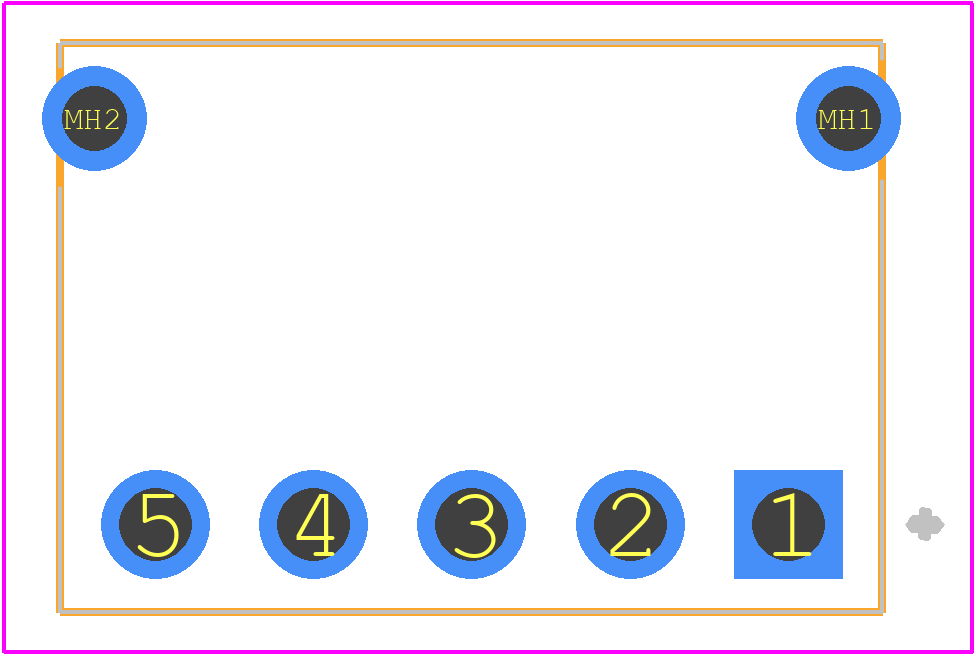

- Footprint Name Other - DF63-5P-3.96DS
- Released Date Aug 23, 2019
- Last Modified Date Oct 8, 2025 9:17 AM UTC
- Pinout / Pin List Click Here (Member Only)
DF63-5P-3.96DS Details
-
Manufacturer Part Number:
DF63-5P-3.96DS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
RECTANGULAR POWER CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
Tin (Sn)
-
Contact Material:
NOT SPECIFIED
