- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DF63-5P-3.96DSA(01)
- Part Number DF63-5P-3.96DSA(01)
- Manufacturer Hirose
- Pin Count 5
- Part Category Connector
- Package Category Other

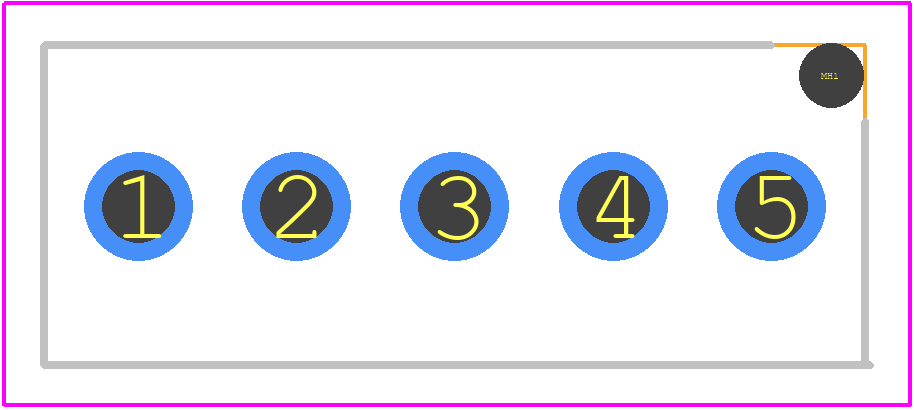

- Footprint Name Other - DF63-5P-3.96DSA(01)-1
- Released Date Jul 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DF63-5P-3.96DSA(01) Details
-
Manufacturer Part Number:
DF63-5P-3.96DSA(01)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Connector Type:
RECTANGULAR POWER CONNECTOR
DF63-5P-3.96DSA(01) Frequently Asked Questions (FAQs)
-
The recommended mating sequence is to insert the plug into the receptacle at a slight angle, then rotate it to the fully mated position to ensure proper connection and prevent damage to the contacts.
-
Yes, the DF63-5P-3.96DSA(01) connector is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration applications, such as in automotive or industrial environments.
-
The maximum operating temperature range for the DF63-5P-3.96DSA(01) connector is -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive, industrial, and consumer electronics.
-
Yes, the DF63-5P-3.96DSA(01) connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The typical contact resistance of the DF63-5P-3.96DSA(01) connector is 10mΩ or less, ensuring reliable and efficient signal transmission.
Trust Checks
Community Provided
System Verified
Community Approved
DF63-5P-3.96DSA(01) Overview
Use the download button to access the DF63-5P-3.96DSA(01) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF63-,
or try a keyword search, such as Power Connectors
