DF63-6P-3.96DS - Hirose

Description: Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm)

Download DF63-6P-3.96DS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF63-6P-3.96DS - Hirose - PCB symbol
click to zoom
PCB Footprints

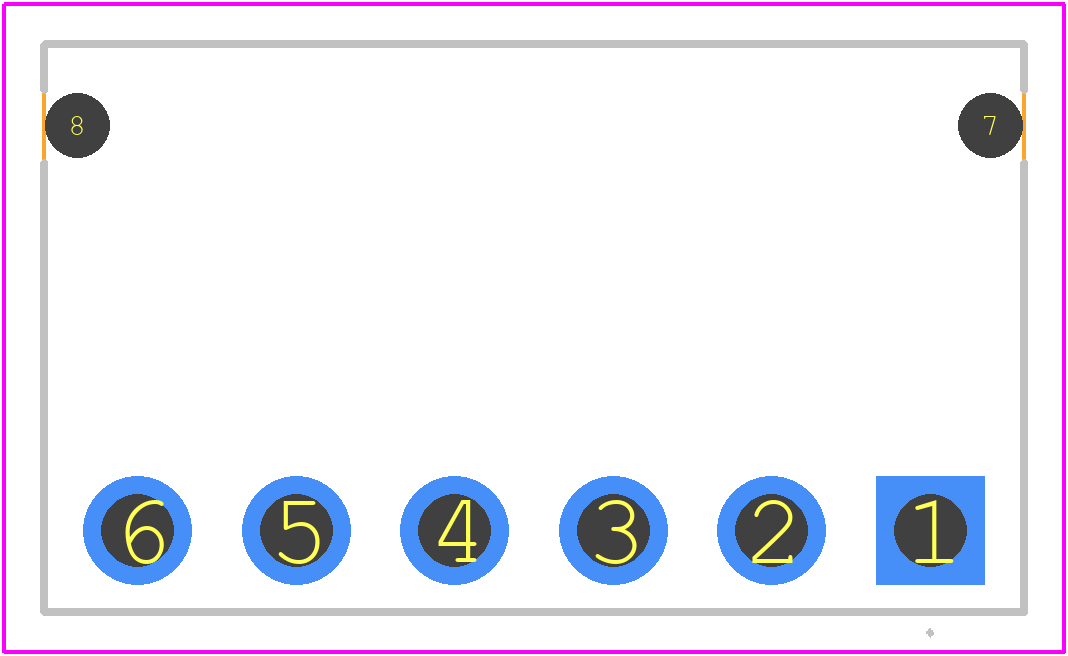

DF63-6P-3.96DS - Hirose PCB footprint - Other - Other - DF63-6P-3.96DS-3
click to zoom
3D Models
DF63-6P-3.96DS - Hirose - 3D model - Other - DF63-6P-3.96DS-3
click to zoom

DF63-6P-3.96DS Details

  • Manufacturer Part Number:

    DF63-6P-3.96DS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

DF63-6P-3.96DS Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to insert the plug into the receptacle while aligning the keyways, and then rotate the plug clockwise to secure it in place.
  • Yes, the DF63-6P-3.96DS connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000Hz, 10G acceleration.
  • The maximum operating temperature range for the DF63-6P-3.96DS connector is -40°C to 105°C.
  • Yes, the DF63-6P-3.96DS connector is compatible with lead-free soldering, with a soldering temperature range of 260°C to 300°C.
  • The recommended torque for the DF63-6P-3.96DS connector is 0.5 N·m to 1.5 N·m.
