DF7058SCFAKV footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

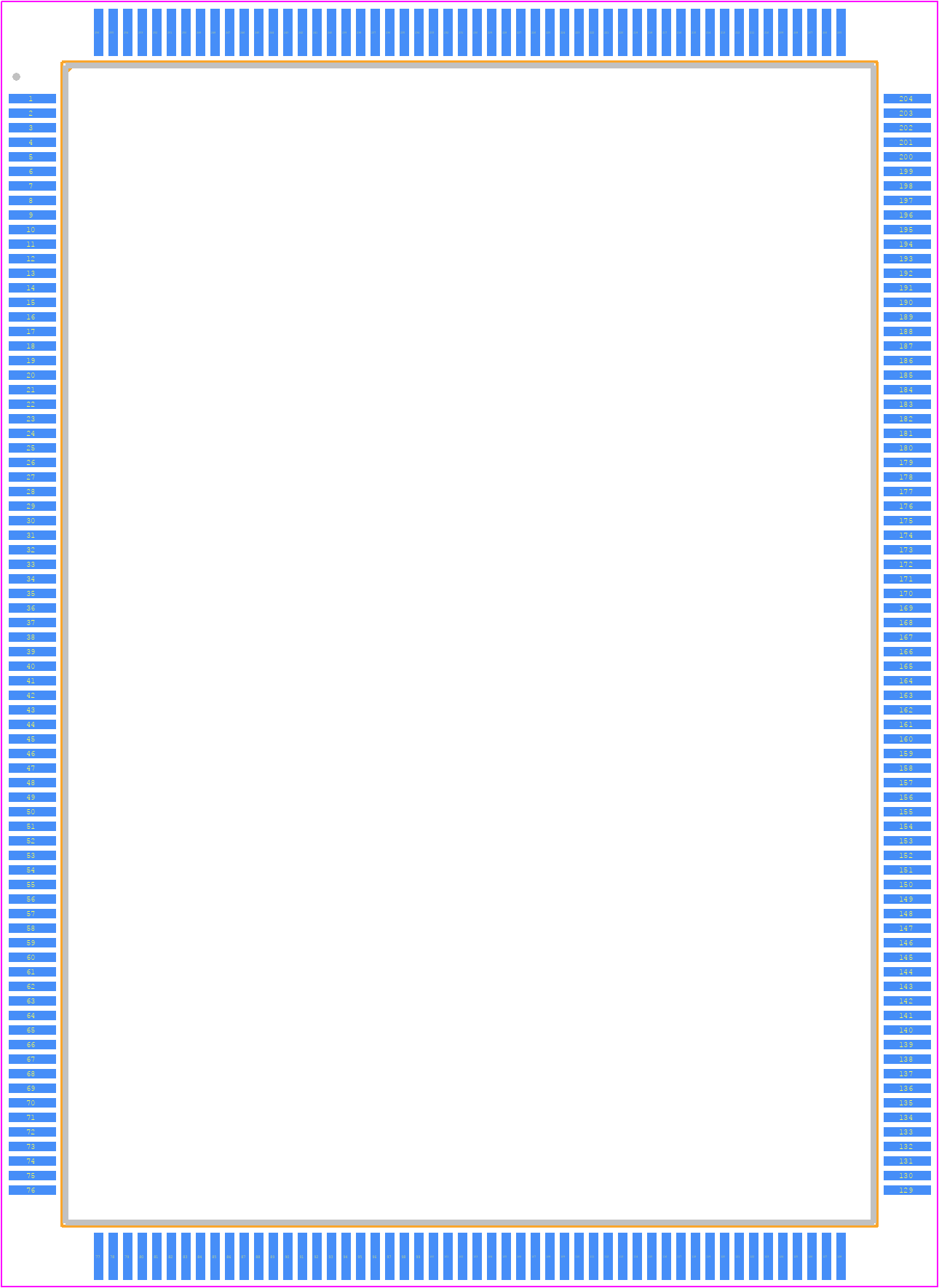

PCB Footprints

3D Models

DF7058SCFAKV Details

The recommended oscillator frequency is between 4 MHz and 24 MHz, with a typical value of 16 MHz.
The clock settings can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the user manual for specific register settings.
The maximum current consumption is approximately 15 mA at 5V and 16 MHz, but this can vary depending on the operating conditions and peripheral usage.
The watchdog timer can be implemented using the Watchdog Timer Control Register (WTCSR) and the Watchdog Timer Counter Register (WTCTR). Refer to the user manual for specific register settings and configuration.
The maximum operating temperature range is -40°C to +85°C, but this can vary depending on the specific package and application.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the DF7058SCFAKV schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DF705, or try a keyword search, such as Microprocessors
