Technical Content
Part Image

DF9-15S-1V(32) - Hirose

Description: Board to Board & Mezzanine Connectors 1.0MM V SMT RECPT 15P TIN PLATING

Download DF9-15S-1V(32) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

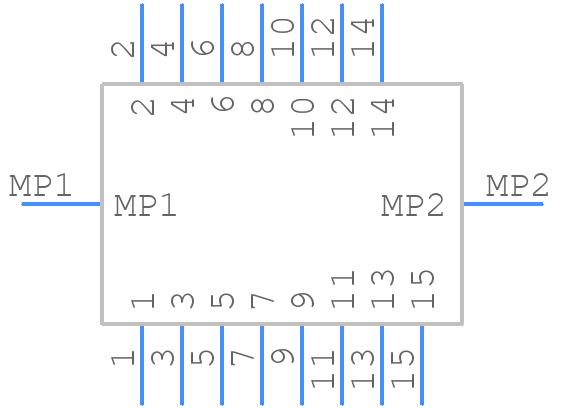

Symbol
DF9-15S-1V(32) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF9-15S-1V(32) - Hirose PCB footprint - Other - Other - DF9-15S-1V(32)-2
click to zoom

DF9-15S-1V(32) Details

  • Manufacturer Part Number:

    DF9-15S-1V(32)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF9-15S-1V(32) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 to 15 in-lbs) for the screws on the DF9-15S-1V(32) connector.
  • Yes, the DF9-15S-1V(32) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • Yes, the DF9-15S-1V(32) connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The DF9-15S-1V(32) connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the DF9-15S-1V(32) connector is designed for automated assembly and inspection, with features such as a pick-and-place compatible design and a clear marking area for automated inspection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF9-15S-1V(32) Overview

Use the download button to access the DF9-15S-1V(32) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF9-1, or try a keyword search, such as Headers and Edge Type Connectors
