DF9-17P-1V(32) - Hirose

Description: Hirose DF9 Series, 1mm Pitch 17 Way 2 Row Straight PCB Header, Solder Termination, 0.5A,150 VAC,- 45C + 125C

Download DF9-17P-1V(32) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

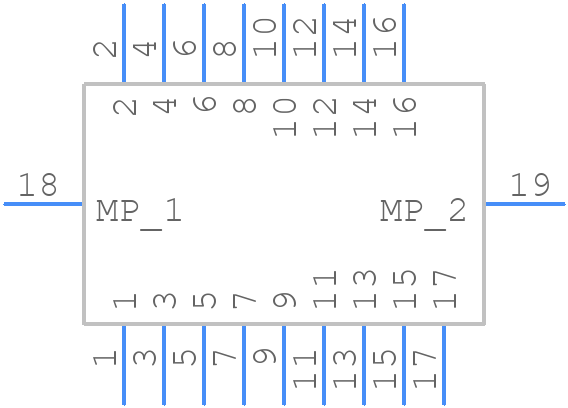

DF9-17P-1V(32) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF9-17P-1V(32) - Hirose PCB footprint - Other - Other - DF9-17P-1V(32)-1
click to zoom

DF9-17P-1V(32) Details

  • Manufacturer Part Number:

    DF9-17P-1V(32)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF9-17P-1V(32) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DF9-17P-1V(32) connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow the recommended mounting and fastening procedures to ensure reliable performance.
  • The maximum operating temperature range for the DF9-17P-1V(32) connector is -40°C to +105°C. However, it's essential to note that the connector's performance may degrade at extreme temperatures, and it's recommended to consult the datasheet for specific temperature-related specifications.
  • The DF9-17P-1V(32) connector is designed to be resistant to water and chemicals, but it's not fully sealed. It's recommended to use additional sealing or protective measures to ensure reliable performance in harsh environments.
  • The recommended torque value for the DF9-17P-1V(32) connector's screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque value to ensure reliable mating and prevent damage to the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF9-17P-1V(32) Overview

Use the download button to access the DF9-17P-1V(32) schematic symbol and PCB footprint.
