The recommended mating sequence is to insert the plug into the receptacle while aligning the keyways, then rotate the plug clockwise to secure it. This ensures proper connection and prevents damage to the contacts.
Yes, the DF9-17S-1V(32) connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) according to Hirose's specifications. However, it's recommended to consult with Hirose or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The maximum operating temperature range for the DF9-17S-1V(32) connector is -40°C to +105°C. However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
Yes, the DF9-17S-1V(32) connector is designed for automated assembly and can be used with standard pick-and-place machines. However, it's recommended to consult with Hirose or a qualified engineer to ensure the connector meets the specific requirements of your assembly process.
The recommended torque value for securing the DF9-17S-1V(32) connector is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque value to ensure proper connection and prevent damage to the contacts.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF9-17S-1V(32) Overview

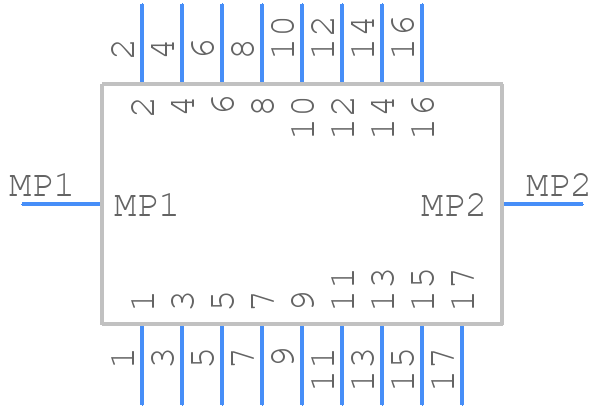

Use the download button to access the DF9-17S-1V(32) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF9-1,
or try a keyword search, such as Headers and Edge Type Connectors
