DF9-41P-1V(32) - Hirose

Description: Hirose DF9 Series, 1mm Pitch 41 Way 2 Row Straight PCB Header, Solder Termination, 0.5A

Download DF9-41P-1V(32) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

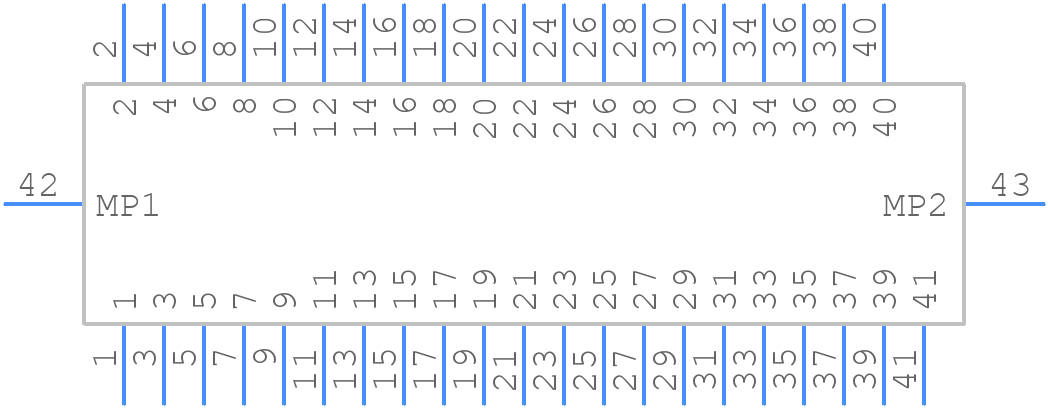

DF9-41P-1V(32) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF9-41P-1V(32) - Hirose PCB footprint - Other - Other - DF9-41P-1V(32)-1
click to zoom

DF9-41P-1V(32) Details

  • Manufacturer Part Number:

    DF9-41P-1V(32)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF9-41P-1V(32) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF9-41P-1V(32) connector is 500 cycles.
  • Yes, the DF9-41P-1V(32) connector is designed to withstand high-vibration environments and is suitable for applications that require resistance to vibration and shock.
  • The operating temperature range for the DF9-41P-1V(32) connector is -40°C to 105°C.
  • Yes, the DF9-41P-1V(32) connector is compatible with lead-free soldering and is designed to meet the requirements of RoHS and other environmental regulations.
  • The recommended torque for the DF9-41P-1V(32) connector is 0.5 N·m to 1.5 N·m.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DF9-41P-1V(32) Overview

Use the download button to access the DF9-41P-1V(32) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF9-4, or try a keyword search, such as Headers and Edge Type Connectors
