DF9-41P-1V(69) - Hirose

Description: Hirose DF9 Series, 1mm Pitch 41 Way 2 Row Straight PCB Header, Solder Termination, 0.5A

Download DF9-41P-1V(69) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

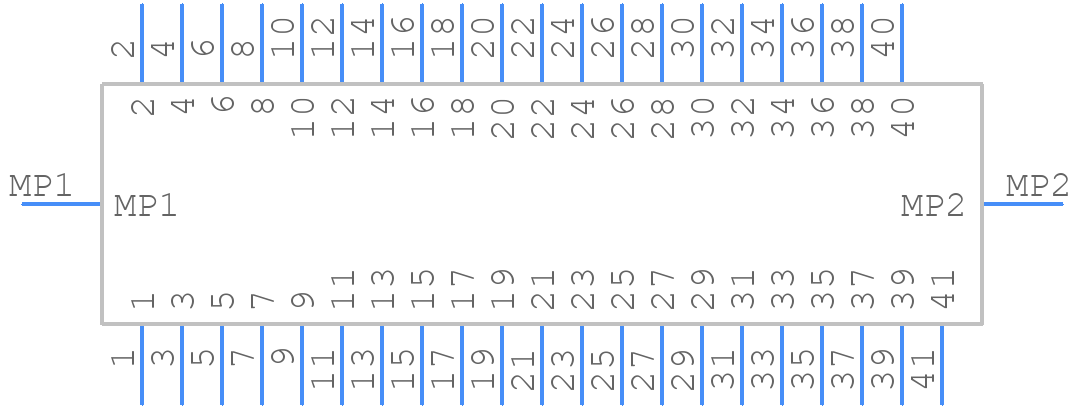

DF9-41P-1V(69) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF9-41P-1V(69) - Hirose PCB footprint - Other - Other - DF9-41P-1V(69)-1
click to zoom

DF9-41P-1V(69) Details

  • Manufacturer Part Number:

    DF9-41P-1V(69)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF9-41P-1V(69) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the DF9-41P-1V(69) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw locking.
  • The DF9-41P-1V(69) has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
  • The operating temperature range for the DF9-41P-1V(69) is -40°C to 105°C (-40°F to 221°F).
  • It's not recommended to use the DF9-41P-1V(69) with a mating connector from a different manufacturer, as compatibility and performance cannot be guaranteed. It's recommended to use the mating connector specified by Hirose Electric Co Ltd.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF9-41P-1V(69) Overview

Use the download button to access the DF9-41P-1V(69) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF9-4, or try a keyword search, such as Headers and Edge Type Connectors
