DF9-9P-1V(32) - Hirose

Description: Hirose DF9 Series, 1mm Pitch 9 Way 2 Row Straight PCB Header, Solder Termination, 0.5A

Download DF9-9P-1V(32) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

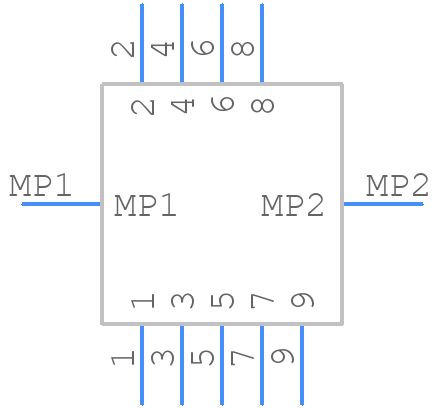

DF9-9P-1V(32) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF9-9P-1V(32) - Hirose PCB footprint - Other - Other - DF9-9P-1V(32)
click to zoom

DF9-9P-1V(32) Details

  • Manufacturer Part Number:

    DF9-9P-1V(32)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF9-9P-1V(32) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF9-9P-1V(32) connector is 500 cycles.
  • Yes, the DF9-9P-1V(32) connector is designed to withstand high-vibration environments and is suitable for applications that require resistance to vibration and shock.
  • The operating temperature range for the DF9-9P-1V(32) connector is -40°C to 105°C.
  • Yes, the DF9-9P-1V(32) connector is compatible with lead-free soldering processes and is designed to meet the requirements of RoHS and other environmental regulations.
  • The recommended torque for the DF9-9P-1V(32) connector is 0.5 N·m to 1.5 N·m.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF9-9P-1V(32) Overview

Use the download button to access the DF9-9P-1V(32) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF9-9, or try a keyword search, such as Headers and Edge Type Connectors
