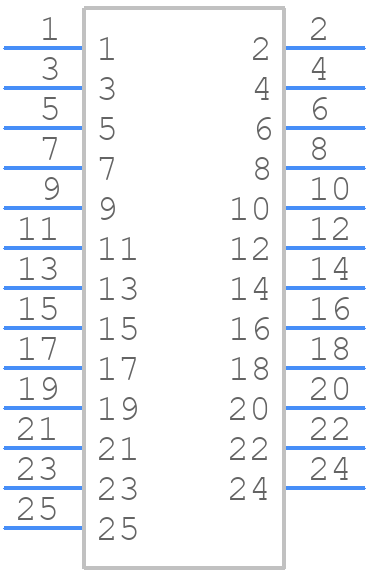

DF9A-25P-1V(22) - Hirose

DF9A-25P-1V(22) Details

• Manufacturer Part Number:

  DF9A-25P-1V(22)

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Country Of Origin:

  Indonesia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  0

• Additional Feature:

  POLARIZED

• Board Mounting Option:

  PEG

• Body Breadth:

  0.165 inch

• Body Depth:

  0.13 inch

• Body Length:

  0.642 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  50 mΩ

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.039 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING MECH

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -45 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  3.9116 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  1 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0
