DF9B-15P-1V(68) - Hirose

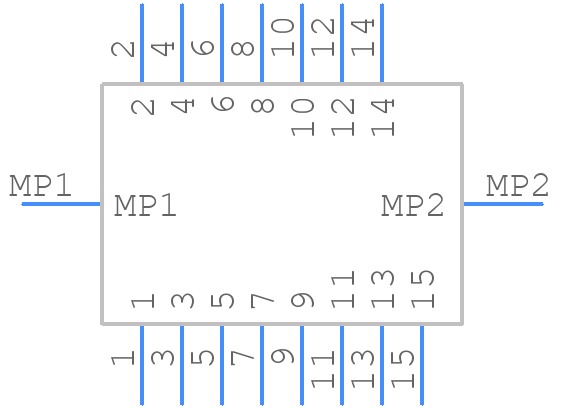

DF9B-15P-1V(68) Details

• Manufacturer Part Number:

  DF9B-15P-1V(68)

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  0

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.165 inch

• Body Depth:

  0.13 inch

• Body Length:

  0.516 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  AU ON SN

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  50 mΩ

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  100 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYAMIDE

• Mating Contact Pitch:

  0.039 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -45 °C

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  3.9116 mm

• Plating Thickness:

  16u inch

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.9906 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  15
