DF9B-17S-1V(69) - Hirose

Description: Board to Board & Mezzanine Connectors 1.0MM V SMT RECPT 17P GLD PLT MTL FIT

Download DF9B-17S-1V(69) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

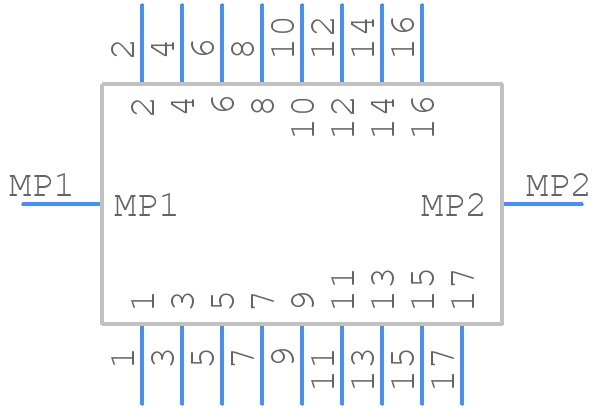

DF9B-17S-1V(69) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF9B-17S-1V(69) - Hirose PCB footprint - Other - Other - DF9B-17S-1V(69)-1
click to zoom
3D Models
DF9B-17S-1V(69) - Hirose - 3D model - Other - DF9B-17S-1V(69)-1
click to zoom

DF9B-17S-1V(69) Details

  • Manufacturer Part Number:

    DF9B-17S-1V(69)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

DF9B-17S-1V(69) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF9B-17S-1V(69) connector is 500 cycles.
  • Yes, the DF9B-17S-1V(69) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • The operating temperature range for the DF9B-17S-1V(69) connector is -40°C to 105°C.
  • Yes, the DF9B-17S-1V(69) connector is compatible with lead-free soldering, making it suitable for RoHS-compliant applications.
  • The typical insertion force for the DF9B-17S-1V(69) connector is around 1.5 N (newtons) per contact.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF9B-17S-1V(69) Overview

Use the download button to access the DF9B-17S-1V(69) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF9B-, or try a keyword search, such as Headers and Edge Type Connectors
