DF9B-9P-1V(32) footprint, schematic symbol and 3D model by Hirose

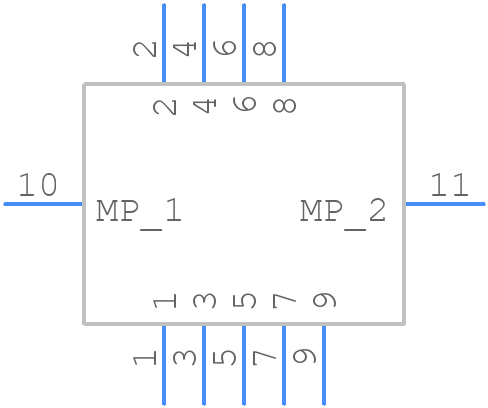

Symbol

click to zoom

PCB Footprints

DF9B-9P-1V(32) - Hirose PCB footprint - Other - Other - DF9B-9P-1V(32)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF9B-9P-1V(32)
Part Number DF9B-9P-1V(32)
Manufacturer Hirose
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - DF9B-9P-1V(32)-1
Released Date Aug 14, 2025
Last Modified Date Aug 14, 2025 7:00 PM UTC
Pinout / Pin List Click Here (Member Only)

DF9B-9P-1V(32) Details

Manufacturer Part Number:
DF9B-9P-1V(32)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Indonesia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
9
Connector Type:
BOARD STACKING CONNECTOR

DF9B-9P-1V(32) Frequently Asked Questions (FAQs)

The recommended mating cycle for the DF9B-9P-1V(32) connector is 500 cycles.
Yes, the DF9B-9P-1V(32) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
The operating temperature range for the DF9B-9P-1V(32) connector is -40°C to 105°C.
Yes, the DF9B-9P-1V(32) connector is designed for automated assembly and can be used with various assembly machines and tools.
The typical lead time for ordering DF9B-9P-1V(32) connectors can vary depending on the supplier and quantity, but it's usually around 4-6 weeks.

Trust Checks

Community Provided

System Verified

Community Approved

DF9B-9P-1V(32) Overview

Use the download button to access the DF9B-9P-1V(32) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF9B-, or try a keyword search, such as Headers and Edge Type Connectors
