DFEG10040D-6R8M=P3 - Murata Electronics

Description: Fixed Inductors 6.8uH 23mOhms 6.5A 10x10.9mm AEC-Q200

Download DFEG10040D-6R8M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DFEG10040D-6R8M=P3 - Murata Electronics - PCB symbol
click to zoom

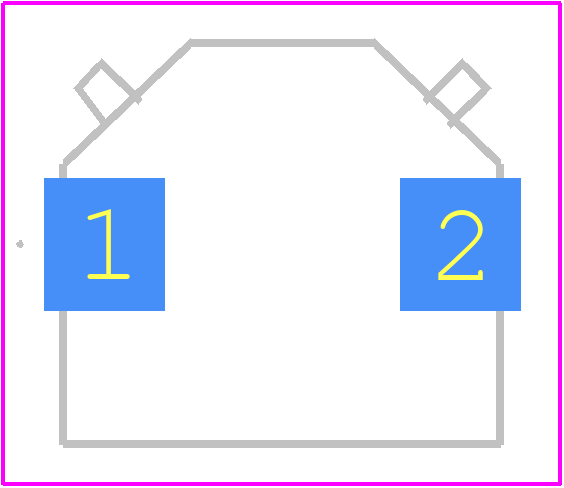

PCB Footprints
DFEG10040D-6R8M=P3 - Murata Electronics PCB footprint - Other - Other - DFEG10040D-6R8M=P3-4
click to zoom

DFEG10040D-6R8M=P3 Details

  • Manufacturer Part Number:

    DFEG10040D-6R8M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Case/Size Code:

    109100/4339

  • Construction:

    Rectangular

  • Core Material:

    METAL ALLOY

  • DC Resistance:

    0.023 Ω

  • Inductance-Nom (L):

    6.8 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4 mm

  • Package Length:

    10.9 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    6.4 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

DFEG10040D-6R8M=P3 Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.5mm between the pad and the solder mask.
  • Handle the component by the edges, avoid touching the pads or the component body, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The maximum reflow temperature is 260°C, with a peak temperature of 250°C for a maximum of 10 seconds.
  • Yes, the component is designed to withstand vibrations up to 10G, but it's recommended to perform additional testing and validation for specific vibration profiles and environments.
  • Store the component in its original packaging, in a dry, cool place, away from direct sunlight, and with a relative humidity of 60% or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DFEG10040D-6R8M=P3 Overview

Use the download button to access the DFEG10040D-6R8M=P3 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DFEG1, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
