DG1408EEN-T1-GE4 footprint, schematic symbol and 3D model by Vishay

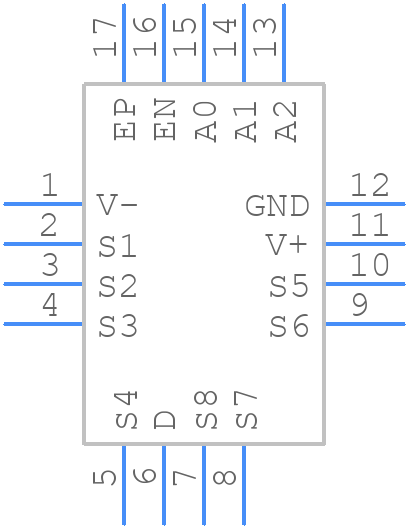

Symbol

click to zoom

PCB Footprints

DG1408EEN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4-16L Case Outline

click to zoom

3D Models

DG1408EEN-T1-GE4 - Vishay - 3D model - Quad Flat No-Lead - QFN 4x4-16L Case Outline

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG1408EEN-T1-GE4
Part Number DG1408EEN-T1-GE4
Manufacturer Vishay
Pin Count 17
Part Category Switch
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN 4x4-16L Case Outline
Released Date Aug 10, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DG1408EEN-T1-GE4 Details

Manufacturer Part Number:
DG1408EEN-T1-GE4
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.39.00.60
Factory Lead Time:
13 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.99
Analog IC - Other Type:
SINGLE-ENDED MULTIPLEXER
JESD-30 Code:
S-XQCC-N16
Length:
4 mm
Neg Supply Voltage-Max (Vsup):
-16.5 V
Neg Supply Voltage-Min (Vsup):
-4.5 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
8
Number of Functions:
1
Number of Terminals:
16
Off-state Isolation-Nom:
58 dB
On-state Resistance Match-Nom:
0.36 Ω
On-state Resistance-Max (Ron):
10 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.16SQ,25
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.95 mm
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
155 ns
Switch-on Time-Max:
230 ns
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Width:
4 mm
