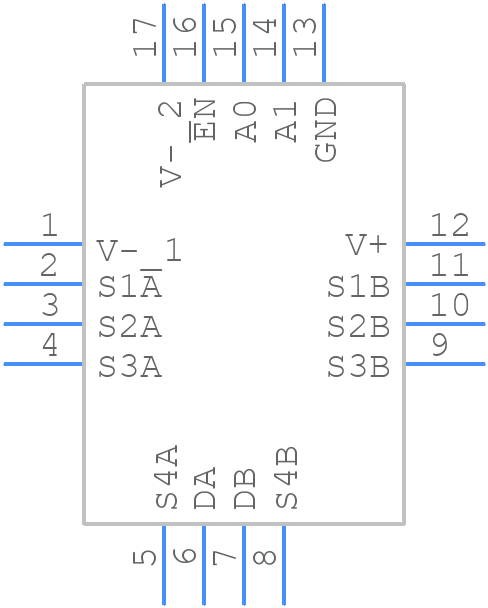

DG1409EEN-T1-GE4 - Vishay

DG1409EEN-T1-GE4 Details

• Manufacturer Part Number:

  DG1409EEN-T1-GE4

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2017-03-20

• Manufacturer:

  Vishay Intertechnologies

• YTEOL:

  6.98

• Analog IC - Other Type:

  DIFFERENTIAL MULTIPLEXER

• JESD-30 Code:

  S-XQCC-N16

• Length:

  4 mm

• Neg Supply Voltage-Max (Vsup):

  -16.5 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  58 dB

• On-state Resistance Match-Nom:

  0.36 Ω

• On-state Resistance-Max (Ron):

  10 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.16SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  0.95 mm

• Supply Voltage-Max (Vsup):

  16.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  155 ns

• Switch-on Time-Max:

  230 ns

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  4 mm
