DG2503DB-T2-GE1 - Vishay

Description: Analog Switch ICs 200 ohm Switch NC/NO Quad SPST Analog

Download DG2503DB-T2-GE1 Model

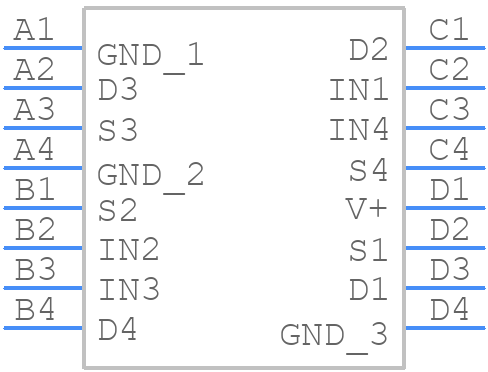

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG2503DB-T2-GE1 - Vishay PCB footprint - BGA - BGA - WCSP 4 x 4: 16 Bumps
click to zoom
3D Models
DG2503DB-T2-GE1 - Vishay  - 3D model - BGA - WCSP 4 x 4: 16 Bumps
click to zoom

DG2503DB-T2-GE1 Details

  • Manufacturer Part Number:

    DG2503DB-T2-GE1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.44 mm

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    83 dB

  • On-state Resistance Match-Nom:

    0.83 Ω

  • On-state Resistance-Max (Ron):

    250 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,14

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.504 mm

  • Signal Current-Max:

    0.005 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    250 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.44 mm

DG2503DB-T2-GE1 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG2503DB-T2-GE1 can be found in the Vishay Intertechnologies' application note AN81142, which provides a detailed layout and land pattern recommendation for optimal performance and reliability.
  • To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the Vishay Intertechnologies' application note AN81142. Additionally, use a solder with a melting point above 217°C (423°F) and avoid excessive soldering temperatures or times to prevent damage to the device.
  • The DG2503DB-T2-GE1 is rated for operation from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet and application notes for specific temperature-related guidelines.
  • The DG2503DB-T2-GE1 is not hermetically sealed, and its performance may be affected by high humidity. To ensure reliability, it's recommended to use the device in environments with a relative humidity below 60%. If high humidity is unavoidable, consider using conformal coating or other environmental protection measures.
  • To prevent damage and ensure long-term reliability, store the DG2503DB-T2-GE1 in a dry, cool place with a relative humidity below 50%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures during storage.
