The recommended land pattern for the DG2535EDQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides detailed guidelines for PCB layout and land pattern design.
The DG2535EDQ-T1-GE3 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and storage. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
The DG2535EDQ-T1-GE3 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
The DG2535EDQ-T1-GE3 is a commercial-grade device, but Vishay Intertechnologies offers a high-reliability version, the DG2535EDQ-T1-GE3HL, which is designed for high-reliability and aerospace applications. Contact Vishay Intertechnologies for more information.
The optimal drive strength for the DG2535EDQ-T1-GE3 depends on the specific application and PCB design. As a general guideline, a drive strength of 2-4 mA is recommended. However, it's essential to consult the datasheet and application notes for more detailed guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG2535EDQ-T1-GE3 Overview

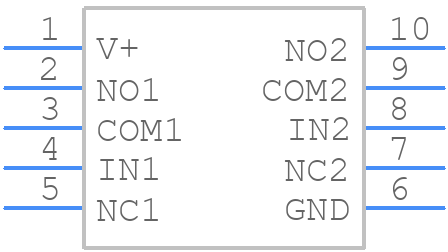

Use the download button to access the DG2535EDQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG253,
or try a keyword search, such as Multiplexers or Switches
