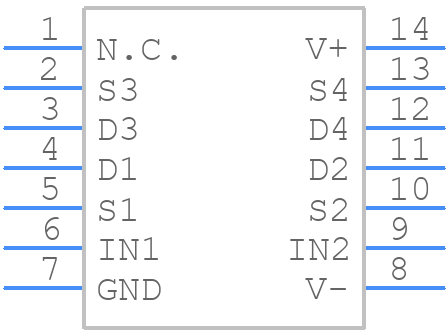

DG303AAK footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

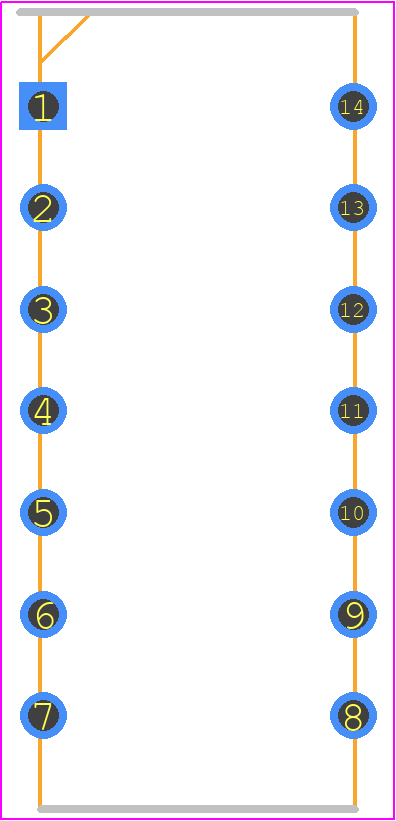

DG303AAK - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - 14 Lead CERDIP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG303AAK
Part Number DG303AAK
Manufacturer Analog Devices
Pin Count 14
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - 14 Lead CERDIP
Released Date Aug 30, 2023
Last Modified Date Mar 26, 2025 11:39 AM UTC
Pinout / Pin List Click Here (Member Only)

DG303AAK Details

Manufacturer Part Number:
DG303AAK
Brand Name:
Analog Devices Inc
Part Life Cycle Code:
Active
Part Package Code:
14-CERDIP-300_MIL
Package Description:
0.300 INCH, CERAMIC, DIP-14
Pin Count:
14
Manufacturer Package Code:
14-CERDIP-300_MIL
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
1988-04-01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SPDT
JESD-30 Code:
R-GDIP-T14
JESD-609 Code:
e0
Length:
19.43 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-18 V
Neg Supply Voltage-Min (Vsup):
-5 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Channels:
2
Number of Functions:
2
Number of Terminals:
14
Off-state Isolation-Nom:
62 dB
On-state Resistance-Max (Ron):
50 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output:
SEPARATE OUTPUT
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Signal Current-Max:
0.03 A
Supply Current-Max (Isup):
0.5 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Switch-off Time-Max:
250 ns
Switch-on Time-Max:
300 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
20
Width:
7.62 mm
