DG333ALDQ-T1-E3 footprint, schematic symbol and 3D model by Vishay

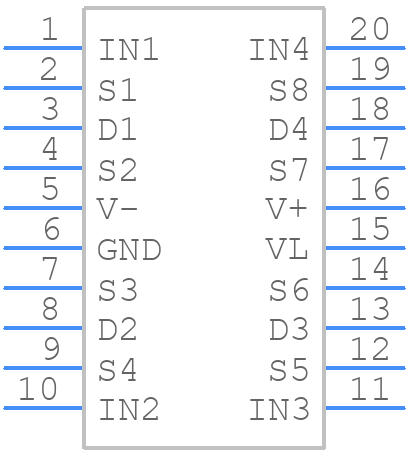

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG333ALDQ-T1-E3
Part Number DG333ALDQ-T1-E3
Manufacturer Vishay
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP: 20-LEAD
Released Date Mar 23, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

DG333ALDQ-T1-E3 Details

Manufacturer Part Number:
DG333ALDQ-T1-E3
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.39.00.60
Factory Lead Time:
26 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
7.38
Analog IC - Other Type:
SPDT
JESD-30 Code:
R-PDSO-G20
Neg Supply Voltage-Max (Vsup):
-22 V
Neg Supply Voltage-Min (Vsup):
-4 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Channels:
1
Number of Functions:
4
Number of Terminals:
20
Off-state Isolation-Nom:
72 dB
On-state Resistance Match-Nom:
2 Ω
On-state Resistance-Max (Ron):
45 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Qualification Status:
Not Qualified
Supply Voltage-Max (Vsup):
22 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Switch-off Time-Max:
145 ns
Switch-on Time-Max:
175 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL

DG333ALDQ-T1-E3 Frequently Asked Questions (FAQs)

The recommended storage temperature range for the DG333ALDQ-T1-E3 is -40°C to 125°C, as per Vishay's standard storage conditions.
While the DG333ALDQ-T1-E3 is primarily designed for analog switch applications, it can be used in high-frequency applications up to 100 MHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing high-frequency circuits.
The DG333ALDQ-T1-E3 is an automotive-grade device, meeting the requirements of AEC-Q100 Grade 1. It's suitable for use in automotive applications, including infotainment, navigation, and advanced driver-assistance systems (ADAS).
Vishay recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
The DG333ALDQ-T1-E3 is designed to operate in harsh environmental conditions, including high temperatures, humidity, and vibration. It meets the requirements of various industry standards, including IEC 60068 and MIL-STD-883.
