Vishay provides a recommended PCB layout and land pattern in their application note AN811, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize thermal resistance.
To prevent damage during assembly and soldering, it's recommended to use a soldering iron with a temperature-controlled tip, and to apply a moderate amount of soldering flux. Avoid using excessive force or pressure, which can cause damage to the device or the PCB.
Although the datasheet specifies a maximum voltage rating, it's essential to consider the voltage stress during switching. Vishay recommends limiting the voltage stress to 80% of the maximum rated voltage to ensure reliable operation and prevent premature failure.
Proper cooling is crucial for the DG390BDJ-E3. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Vishay provides thermal management guidelines in their application notes and datasheets.
The DG390BDJ-E3 is a sensitive device and requires proper ESD handling and storage precautions. Vishay recommends following the ESD Association's guidelines for handling and storing ESD-sensitive devices, including the use of ESD-protective packaging and wrist straps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG390BDJ-E3 Overview

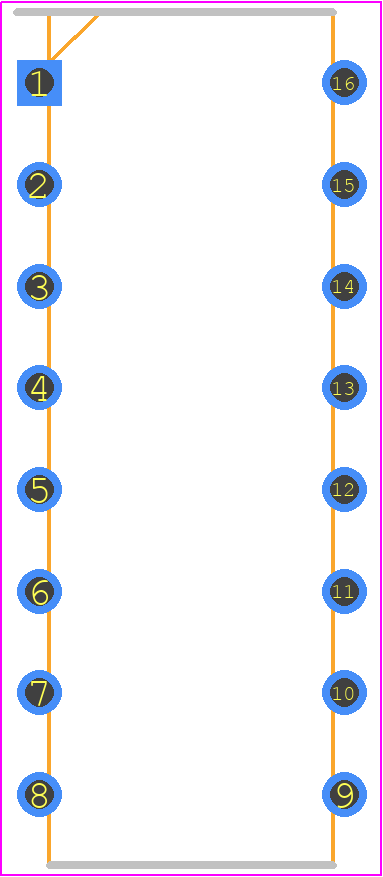

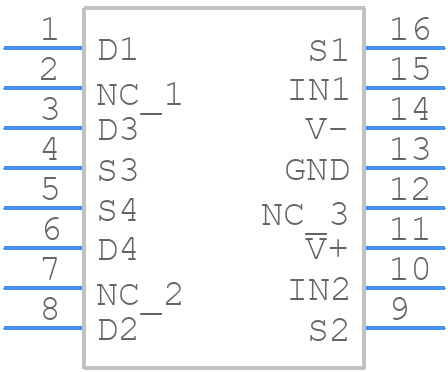

Use the download button to access the DG390BDJ-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG390,
or try a keyword search, such as Multiplexers or Switches
