DG4051EEY-T1-GE3 footprint, schematic symbol and 3D model by Vishay

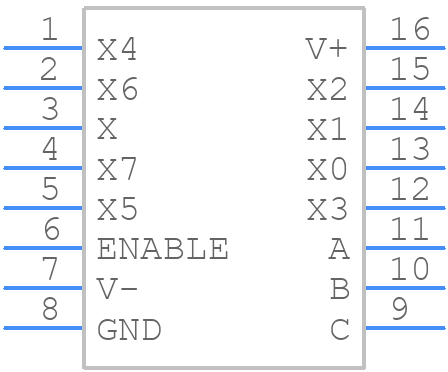

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG4051EEY-T1-GE3
Part Number DG4051EEY-T1-GE3
Manufacturer Vishay
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC 16-LEAD
Released Date Mar 14, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DG4051EEY-T1-GE3 Details

Manufacturer Part Number:
DG4051EEY-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, MS-012, SOIC-16
HTS Code:
8542.39.00.60
Factory Lead Time:
13 Weeks
Date Of Intro:
2016-07-19
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.75
Analog IC - Other Type:
SINGLE-ENDED MULTIPLEXER
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Neg Supply Voltage-Max (Vsup):
-8 V
Neg Supply Voltage-Min (Vsup):
-3 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
8
Number of Functions:
1
Number of Terminals:
16
Off-state Isolation-Nom:
49 dB
On-state Resistance Match-Nom:
0.91 Ω
On-state Resistance-Max (Ron):
106 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
97 ns
Switch-on Time-Max:
86 ns
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm

DG4051EEY-T1-GE3 Frequently Asked Questions (FAQs)

The recommended land pattern for the DG4051EEY-T1-GE3 can be found in the Vishay Intertechnologies' application note AN92061, which provides guidelines for PCB layout and land pattern design.
The DG4051EEY-T1-GE3 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and storage. Vishay Intertechnologies recommends using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
The DG4051EEY-T1-GE3 has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance at extreme temperatures. Consult the datasheet for specific derating guidelines.
The DG4051EEY-T1-GE3 is a commercial-grade device, but Vishay Intertechnologies offers a range of high-reliability and aerospace-grade devices that meet specific industry standards (e.g., MIL-PRF-38535). Contact Vishay Intertechnologies for more information on their high-reliability product offerings.
Vishay Intertechnologies provides a range of resources for troubleshooting, including application notes, FAQs, and technical support. Engineers can also consult the datasheet and consult with Vishay Intertechnologies' technical support team for assistance.

Trust Checks

Community Provided

System Verified

Community Approved

DG4051EEY-T1-GE3 Overview

Use the download button to access the DG4051EEY-T1-GE3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DG405, or try a keyword search, such as Multiplexers or Switches
