The recommended PCB footprint for the DG4052EEY-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides detailed guidelines for PCB layout and land pattern design.
To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the Vishay Intertechnologies' application note AN81142. Additionally, use a solder with a melting point below 260°C and avoid excessive soldering temperatures.
The maximum operating temperature range for the DG4052EEY-T1-GE3 is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the derating factors and thermal management strategies to ensure reliable operation within this range.
The DG4052EEY-T1-GE3 is a commercial-grade device, and its use in high-reliability or aerospace applications may require additional testing, validation, and certification. It's recommended to consult with Vishay Intertechnologies' sales team or application engineers to discuss specific requirements and potential alternatives.
To prevent electrostatic discharge (ESD) damage, handle the DG4052EEY-T1-GE3 with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the workspace and personnel are grounded, and follow proper handling and storage procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG4052EEY-T1-GE3 Overview

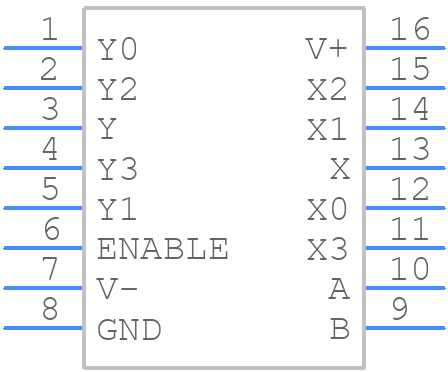

Use the download button to access the DG4052EEY-T1-GE3 schematic symbol, PCB footprint, and 3D model.
