DG4053EEN-T1-GE4 footprint, schematic symbol and 3D model by Vishay

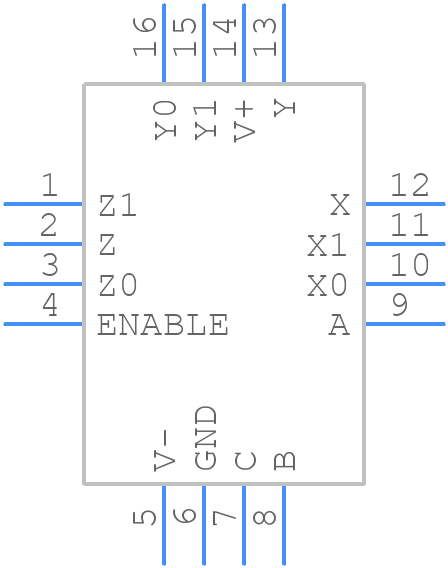

Symbol

click to zoom

PCB Footprints

DG4053EEN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DG4053EEN-T1-GE4

click to zoom

3D Models

DG4053EEN-T1-GE4 - Vishay - 3D model - Quad Flat No-Lead - DG4053EEN-T1-GE4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG4053EEN-T1-GE4
Part Number DG4053EEN-T1-GE4
Manufacturer Vishay
Pin Count 16
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - DG4053EEN-T1-GE4
Released Date Jan 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DG4053EEN-T1-GE4 Details

Manufacturer Part Number:
DG4053EEN-T1-GE4
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
1.80 X 2.60 MM, ROHS COMPLIANT, MQFN-16
HTS Code:
8542.39.00.60
Date Of Intro:
2016-07-19
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.79
Analog IC - Other Type:
SPDT
JESD-30 Code:
R-XQCC-N16
Length:
2.6 mm
Neg Supply Voltage-Max (Vsup):
-8 V
Neg Supply Voltage-Min (Vsup):
-3 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
1
Number of Functions:
3
Number of Terminals:
16
Off-state Isolation-Nom:
49 dB
On-state Resistance Match-Nom:
0.91 Ω
On-state Resistance-Max (Ron):
106 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC16,.07X.1,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
97 ns
Switch-on Time-Max:
86 ns
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
1.8 mm
