DG4053EEQ-T1-GE3 footprint, schematic symbol and 3D model by Vishay

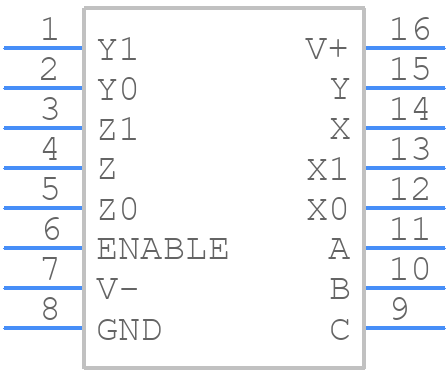

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG4053EEQ-T1-GE3
Part Number DG4053EEQ-T1-GE3
Manufacturer Vishay
Pin Count 16
Part Category Switch
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-pin TSSOP
Released Date Feb 7, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DG4053EEQ-T1-GE3 Details

Manufacturer Part Number:
DG4053EEQ-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, TSSOP-16
HTS Code:
8542.39.00.60
Factory Lead Time:
13 Weeks
Date Of Intro:
2016-07-19
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.79
Analog IC - Other Type:
SPDT
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
5 mm
Neg Supply Voltage-Max (Vsup):
-8 V
Neg Supply Voltage-Min (Vsup):
-3 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
1
Number of Functions:
3
Number of Terminals:
16
Off-state Isolation-Nom:
49 dB
On-state Resistance Match-Nom:
0.91 Ω
On-state Resistance-Max (Ron):
106 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
97 ns
Switch-on Time-Max:
86 ns
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

DG4053EEQ-T1-GE3 Frequently Asked Questions (FAQs)

The recommended land pattern for the DG4053EEQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides guidelines for PCB layout and land pattern design.
To prevent ESD damage, it is recommended to handle the DG4053EEQ-T1-GE3 in an ESD-controlled environment, use ESD-protective packaging, and follow proper grounding procedures during assembly.
The DG4053EEQ-T1-GE3 is rated for operation from -40°C to 125°C, but it's essential to consider the specific application's thermal requirements and potential thermal derating.
While the DG4053EEQ-T1-GE3 is a high-quality component, it may not meet the specific requirements for high-reliability or aerospace applications. Engineers should consult with Vishay Intertechnologies or a qualified representative to determine the component's suitability for such applications.
To ensure proper switching, the DG4053EEQ-T1-GE3's control input (IN) should be driven with a logic signal that meets the specified voltage and current requirements, and the switch should be operated within the recommended frequency range.

Trust Checks

Community Provided

System Verified

Community Approved

DG4053EEQ-T1-GE3 Overview

Use the download button to access the DG4053EEQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DG405, or try a keyword search, such as Multiplexers or Switches
