DG4053EEY-T1-GE3 footprint, schematic symbol and 3D model by Vishay

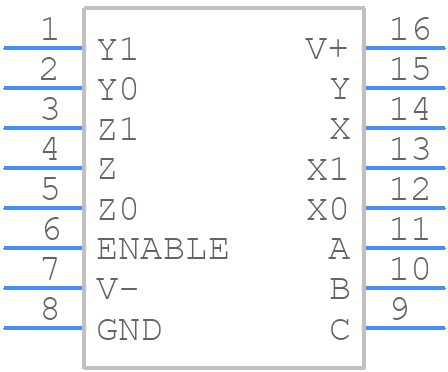

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG4053EEY-T1-GE3
Part Number DG4053EEY-T1-GE3
Manufacturer Vishay
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-Pin Narrow SOIC
Released Date Jun 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DG4053EEY-T1-GE3 Details

Manufacturer Part Number:
DG4053EEY-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, MS-012, SOIC-16
HTS Code:
8542.39.00.60
Factory Lead Time:
13 Weeks
Date Of Intro:
2016-07-19
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.79
Analog IC - Other Type:
SPDT
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Neg Supply Voltage-Max (Vsup):
-8 V
Neg Supply Voltage-Min (Vsup):
-3 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
1
Number of Functions:
3
Number of Terminals:
16
Off-state Isolation-Nom:
49 dB
On-state Resistance Match-Nom:
0.91 Ω
On-state Resistance-Max (Ron):
106 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
97 ns
Switch-on Time-Max:
86 ns
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm

DG4053EEY-T1-GE3 Frequently Asked Questions (FAQs)

The recommended land pattern for the DG4053EEY-T1-GE3 can be found in the Vishay Intertechnologies' application note AN483, which provides detailed guidelines for PCB layout and land pattern design.
The DG4053EEY-T1-GE3 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices if the application requires it.
The DG4053EEY-T1-GE3 has an operating temperature range of -40°C to +125°C, but it's essential to note that the device's performance may degrade at extreme temperatures. Consult the datasheet for specific temperature-related characteristics.
The DG4053EEY-T1-GE3 is a commercial-grade device, but Vishay Intertechnologies offers other versions with enhanced reliability and screening options for high-reliability or aerospace applications. Contact Vishay's sales team or consult their website for more information.
Follow the recommended soldering profile and assembly guidelines provided in the Vishay Intertechnologies' application note AN483. Additionally, ensure that the PCB design and assembly process meet the requirements outlined in the IPC-A-610 standard.

Trust Checks

Community Provided

System Verified

Community Approved

DG4053EEY-T1-GE3 Overview

Use the download button to access the DG4053EEY-T1-GE3 schematic symbol, PCB footprint, and 3D model.
