The recommended land pattern for the DG406BDN-E3 can be found in the Vishay Intertechnologies' application note AN81142, which provides guidelines for PCB layout and land pattern design.
To prevent ESD damage, it is recommended to handle the DG406BDN-E3 in an ESD-controlled environment, use ESD-protective packaging, and follow proper grounding procedures during assembly.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance may degrade at extreme temperatures. For optimal performance, it's recommended to operate the DG406BDN-E3 within a temperature range of -20°C to 85°C.
While the DG406BDN-E3 is a high-quality device, it may not meet the specific requirements of high-reliability or aerospace applications. Engineers should consult with Vishay Intertechnologies' sales team or application engineers to determine the suitability of the device for their specific application.
To troubleshoot issues with the DG406BDN-E3, engineers should consult the device's datasheet, application notes, and evaluation boards. They can also contact Vishay Intertechnologies' technical support team for guidance on debugging and troubleshooting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG406BDN-E3 Overview

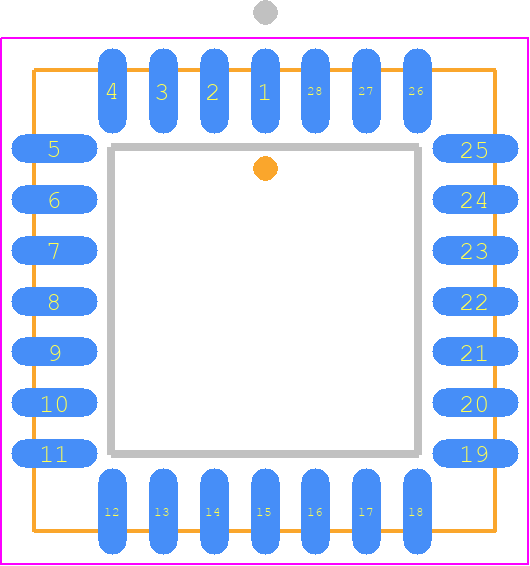

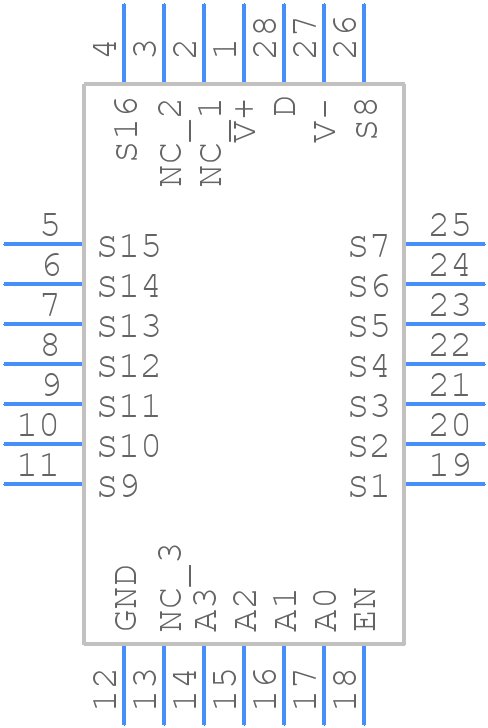

Use the download button to access the DG406BDN-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG406,
or try a keyword search, such as Multiplexers or Switches
