DG408DJ-E3 - Vishay

Description: DG408DJ-E3 Vishay DG408DJ-E3, Analogue Switch Single 8:1, 15 V, 18 V, 24 V, 28 V, 16-Pin PDIP

Download DG408DJ-E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DG408DJ-E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

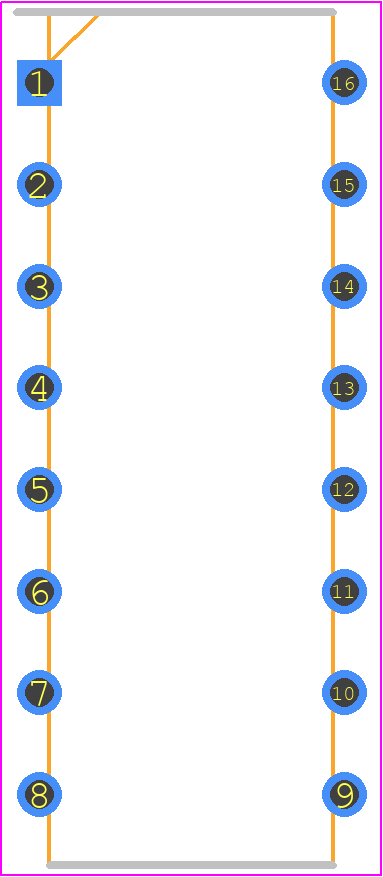

DG408DJ-E3 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DG441LEDJ-GE3-+-+
click to zoom
3D Models
DG408DJ-E3 - Vishay - 3D model - Dual-In-Line Packages - DG441LEDJ-GE3-+-+
click to zoom

DG408DJ-E3 Details

  • Manufacturer Part Number:

    DG408DJ-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    15 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

DG408DJ-E3 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the DG408DJ-E3 can be found in the Vishay Intertechnologies' application note AN81142. It provides detailed guidelines for optimal PCB design and layout to ensure reliable operation and minimize thermal resistance.
  • Vishay Intertechnologies recommends following the soldering conditions outlined in the JEDEC standard J-STD-020D.1. The recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds. It's also essential to use a solder with a melting point above 217°C (423°F) to prevent thermal damage.
  • The DG408DJ-E3 can withstand voltage transients up to 20% above the maximum rated voltage (VDD) for a duration of 100 ms. However, it's recommended to consult with Vishay Intertechnologies' application engineers for specific guidance on voltage transient tolerance in your application.
  • The power dissipation (PD) can be calculated using the formula: PD = (VDD x IDD) + (VSS x ISS). The junction temperature (TJ) can be estimated using the thermal resistance (RθJA) and the ambient temperature (TA): TJ = TA + (PD x RθJA). Consult the datasheet for the specific thermal resistance values and thermal derating curves.
  • Yes, the DG408DJ-E3 is a sensitive device and requires proper ESD protection during handling, storage, and assembly. Vishay Intertechnologies recommends following the ESD protection guidelines outlined in the ANSI/ESD S20.20 standard.
