DG412DY+ - Analog Devices

Description: DG412DY+, Analogue SPST Switch Quad SPST, 12, 15, 18, 24, 28V, 16-Pin, SOIC

Download DG412DY+ Model

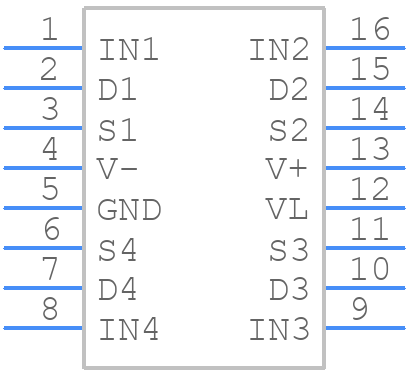

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG412DY+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - DG412DY+
click to zoom
3D Models
DG412DY+ - Analog Devices  - 3D model - Small Outline Packages - DG412DY+
click to zoom

DG412DY+ Details

  • Manufacturer Part Number:

    DG412DY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-12-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    45 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    145 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DG412DY+ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VSS, and then the logic inputs. This ensures proper device operation and prevents latch-up.
  • To ensure proper biasing, connect VDD to a positive voltage supply (e.g., +5V), VSS to a negative voltage supply (e.g., -5V), and the analog signal to the switch terminals. The switch will operate correctly when the control voltage (VCTL) is between VSS and VDD.
  • The maximum voltage that can be applied to the analog switch terminals is ±5.5V, which is the absolute maximum rating. However, for normal operation, the voltage should be limited to the range of VSS to VDD (e.g., -5V to +5V).
  • To minimize the effect of charge injection, use a low-impedance source, keep the analog signal path as short as possible, and consider using a shielded cable or a guard ring around the analog signal path. Additionally, use a low-capacitance layout and avoid running digital signals near the analog signal path.
  • For optimal performance, use a symmetrical layout, keep the analog signal path separate from the digital control signals, and use a ground plane to minimize noise and crosstalk. Route the analog signal path as a differential pair, and use a low-impedance path for the power supplies (VDD and VSS).
