DG412DY+T footprint, schematic symbol and 3D model by Analog Devices

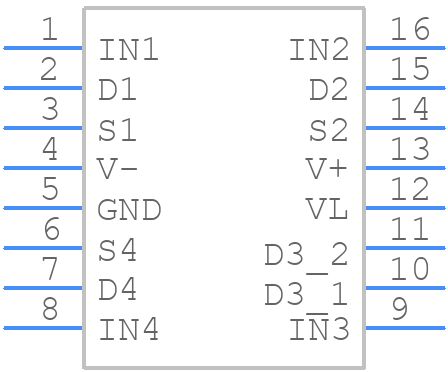

Symbol

click to zoom

PCB Footprints

DG412DY+T - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P16+1

click to zoom

3D Models

DG412DY+T - Analog Devices - 3D model - Dual-In-Line Packages - P16+1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG412DY+T
Part Number DG412DY+T
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - P16+1
Released Date Mar 28, 2025
Last Modified Date Mar 28, 2025 3:29 AM UTC
Pinout / Pin List Click Here (Member Only)

DG412DY+T Details

Manufacturer Part Number:
DG412DY+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-SOIC_N-150_MIL
Package Description:
SOP, SOP16,.25
Pin Count:
16
Manufacturer Package Code:
16-SOIC_N-150_MIL
Reach Compliance Code:
Compliant
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
1999-12-20
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SPST
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-20 V
Neg Supply Voltage-Min (Vsup):
-4.5 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Normal Position:
NO
Number of Channels:
1
Number of Functions:
4
Number of Terminals:
16
Off-state Isolation-Nom:
68 dB
On-state Resistance Match-Nom:
3 Ω
On-state Resistance-Max (Ron):
45 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Signal Current-Max:
0.03 A
Supply Current-Max (Isup):
0.005 mA
Supply Voltage-Max (Vsup):
20 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Switch-off Time-Max:
145 ns
Switch-on Time-Max:
175 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

DG412DY+T Frequently Asked Questions (FAQs)

A good PCB layout for the DG412DY+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to keep the signal traces short and direct.
The DG412DY+T requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator to minimize noise. The power sequencing requirement is to power up the VDD pin before the logic inputs, and to ensure that the VDD pin is stable before applying any logic signals.
The DG412DY+T can operate up to 100 MHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. At higher frequencies, the device's performance may be affected by increased power consumption, reduced bandwidth, and increased distortion.
To protect the DG412DY+T from ESD, it's recommended to handle the device with anti-static wrist straps, mats, and bags. Additionally, the device should be stored in a dry, cool environment, away from direct sunlight and moisture. It's also recommended to use a conformal coating to protect the device from moisture and contaminants.
The DG412DY+T has a maximum junction temperature of 150°C, and it's recommended to keep the device's operating temperature below 85°C for optimal performance. Thermal management considerations include using a heat sink, ensuring good airflow, and minimizing power consumption. It's also recommended to use thermal interface materials to improve heat transfer between the device and the heat sink.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DG412DY+T Overview

Use the download button to access the DG412DY+T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DG412, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to DG412DY+T

Showing 0 results

Image	Part Number	Model
	DG412DY Temic Semiconductors SPST, 4 Func, 1 Channel, CMOS, PDSO16
	DG412DY+T Maxim Integrated Products SPST, 4 Func, 1 Channel, CMOS, PDSO16
	DG412DY-T Maxim Integrated Products SPST, 4 Func, 1 Channel, CMOS, PDSO16
	DG412EY Harris Semiconductor SPST, 4 Func, 1 Channel, CMOS, PDSO16
	DG412DY-T Rochester Electronics LLC SPST, 4 Func, 1 Channel, CMOS, PDSO16
For a full list of alternate parts for DG412DY+T, check out Findchips.com
