Description:44 V supply max. rating
• ± 15 V analog signal range
• On-resistance - RDS(on): 25 Ω
• Fast switching - ton: 68 ns
• Ultra low power - PD: 0.35 μW
• TTL, CMOS compatible
• Single supply capability
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
The recommended PCB footprint for the DG412HSDN-T1-E4 is a standard SOT23-4 package with a 1.3mm x 1.3mm body size. The recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from their technical support team.
To ensure the reliability of the DG412HSDN-T1-E4 in high-temperature applications, it is recommended to follow proper PCB design and layout guidelines, use a thermally conductive PCB material, and ensure good thermal management. Additionally, the device should be operated within its specified temperature range and derated according to the manufacturer's recommendations.
The DG412HSDN-T1-E4 is a high-speed analog switch with a bandwidth of up to 200 MHz. While it can be used in high-frequency applications, it is essential to consider the device's frequency response, parasitic capacitance, and inductance when designing the circuit. Additionally, proper PCB layout and decoupling techniques should be employed to minimize signal degradation and ensure reliable operation.
The recommended power-up sequence for the DG412HSDN-T1-E4 is to apply the power supply voltage (VDD) before the control voltage (VCC). This ensures that the internal circuitry is properly initialized and configured before the device is enabled.
To troubleshoot issues with the DG412HSDN-T1-E4, it is recommended to follow a systematic approach, starting with verifying the power supply voltage, control voltage, and input signals. Check for proper PCB layout, decoupling, and termination. Use oscilloscopes and logic analyzers to monitor the device's behavior and identify potential issues. Consult the datasheet and application notes for guidance, and contact Vishay Intertechnologies' technical support team if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG412HSDN-T1-E4 Overview

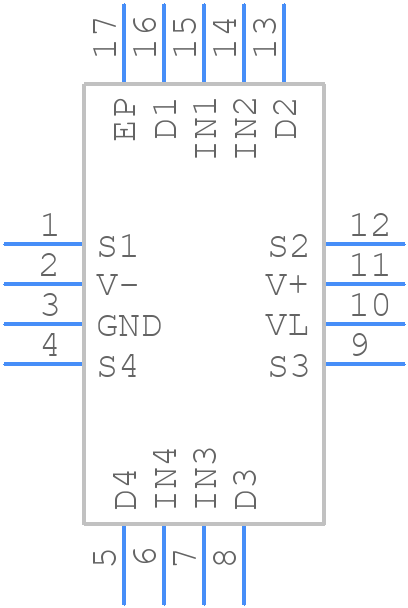

Use the download button to access the DG412HSDN-T1-E4 schematic symbol, PCB footprint, and 3D model.
