DG419BDQ-T1-E3 footprint, schematic symbol and 3D model by Vishay

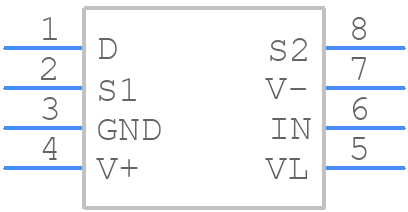

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG419BDQ-T1-E3
Part Number DG419BDQ-T1-E3
Manufacturer Vishay
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MSOP-8.
Released Date Jan 12, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

DG419BDQ-T1-E3 Details

Manufacturer Part Number:
DG419BDQ-T1-E3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-8
Country Of Origin:
Israel
HTS Code:
8542.39.00.60
Factory Lead Time:
26 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
8
Additional Feature:
ALSO OPERATES WITH 12 V NOMINAL SINGLE SUPPLY
Analog IC - Other Type:
SPDT
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Functions:
4
Number of Terminals:
8
Off-state Isolation-Nom:
82 dB
On-state Resistance-Max (Ron):
25 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.19
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Switch-off Time-Max:
80 ns
Switch-on Time-Max:
89 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

DG419BDQ-T1-E3 Frequently Asked Questions (FAQs)

The recommended land pattern for the DG419BDQ-T1-E3 can be found in the Vishay Intertechnologies' application note AN81193, which provides guidelines for PCB layout and land pattern design.
The DG419BDQ-T1-E3 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and storage to prevent damage. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
The DG419BDQ-T1-E3 is rated for operation from -40°C to 125°C, but it's essential to consider the derating curves and thermal management strategies to ensure reliable operation within the specified temperature range.
The DG419BDQ-T1-E3 is a commercial-grade device, but Vishay Intertechnologies offers a range of high-reliability and aerospace-grade products. For high-reliability or aerospace applications, consider using a device specifically designed and qualified for those markets, such as the Vishay's MIL-PRF-19500 or ESCC-qualified products.
The optimal drive strength for the DG419BDQ-T1-E3 depends on the specific application and PCB layout. As a general guideline, start with a drive strength of 10-20 mA and adjust as needed to ensure reliable switching and minimize power consumption.

Trust Checks

System Verified

DG419BDQ-T1-E3 Overview

Use the download button to access the DG419BDQ-T1-E3 schematic symbol, PCB footprint, and 3D model.
