DG441DVZ - Renesas Electronics

Description: The DG441 and DG442 monolithic CMOS analog switches are drop-in replacements for the popular DG201A and DG202 series devices. They include four independent single pole single throw (SPST) analog switches, TTL and CMOS compatible digital inputs, and a voltage reference for logic thresholds. These switches feature lower analog ON resistance (

Download DG441DVZ Model

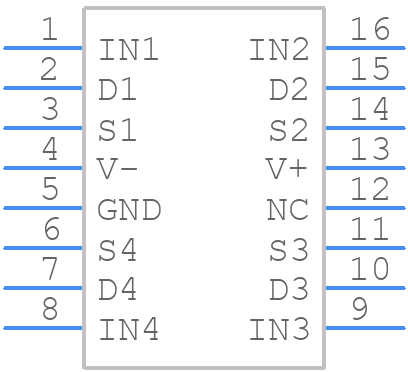

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG441DVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.173
click to zoom
3D Models
DG441DVZ - Renesas Electronics  - 3D model - Small Outline Packages - M16.173
click to zoom

DG441DVZ Details

  • Manufacturer Part Number:

    DG441DVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.173

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -20 V

  • Neg Supply Voltage-Min (Vsup):

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance-Max (Ron):

    85 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    250 ns

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DG441DVZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG441DVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the VREF pin can help reduce noise and EMI.
  • To ensure the DG441DVZ operates within the specified temperature range, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and avoiding high-power dissipation components nearby. Additionally, operating the device within the recommended voltage and current ranges can help minimize heat generation.
  • The recommended power-up sequence for the DG441DVZ is to apply VCC first, followed by VREF, and then the analog input signals. This sequence helps prevent latch-up and ensures proper device operation.
  • The DG441DVZ has a built-in latch-up protection feature that can be triggered by excessive voltage or current. To handle latch-up, ensure that the device is operated within the recommended voltage and current ranges, and avoid applying excessive voltage or current to the inputs. If latch-up occurs, power-cycle the device to reset it.
  • The maximum allowable capacitance on the analog input pins of the DG441DVZ is typically around 10nF to 100nF. Exceeding this value can affect the device's frequency response and stability. It's essential to consult the datasheet and application notes for specific guidance on input capacitance.
