ALSO OPERATES WITH 12V SINGLE SUPPLY AND +/-15V DUAL SUPPLY
Analog IC - Other Type:
SPST
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-16.5 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Normal Position:
NC
Number of Channels:
1
Number of Functions:
4
Number of Terminals:
16
On-state Resistance Match-Nom:
0.13 Ω
On-state Resistance-Max (Ron):
11 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
2.4 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
113 ns
Switch-on Time-Max:
256 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm
DG451EY-T1-E3 Frequently Asked Questions (FAQs)
The recommended PCB footprint for the DG451EY-T1-E3 is a standard SOIC-8 package with a 1.27mm pitch. A minimum pad size of 1.5mm x 1.5mm is recommended for reliable soldering.
To ensure reliable switching performance in high-frequency applications, it's essential to minimize parasitic inductance and capacitance. Use short, direct traces, and consider using a ground plane to reduce noise and improve signal integrity.
The maximum allowable power dissipation for the DG451EY-T1-E3 is 500mW. Exceeding this limit may cause the device to overheat, leading to reduced performance or even failure.
The DG451EY-T1-E3 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments to prevent overheating.
To protect the DG451EY-T1-E3 from ESD, handle the device with anti-static wrist straps, mats, or bags. Ensure that the PCB and components are properly grounded, and consider adding ESD protection devices, such as TVS diodes, to the circuit.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DG451EY-T1-E3 Overview

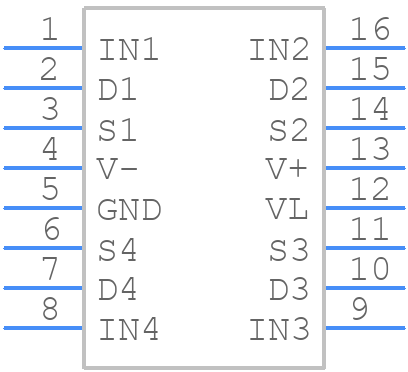

Use the download button to access the DG451EY-T1-E3 schematic symbol and PCB footprint.
