The recommended PCB footprint for the DG506BEQ-T1-GE3 is a standard SOT23-6 package with a 1.8mm x 1.4mm body size. The recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from their technical support team.
To ensure the reliability of the DG506BEQ-T1-GE3 in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet. Additionally, the device should be operated within the specified junction temperature range, and proper thermal management should be implemented to prevent overheating.
The DG506BEQ-T1-GE3 is a general-purpose analog switch, and its frequency response is limited to a few hundred kHz. For high-frequency applications, it is recommended to use a high-frequency analog switch or a dedicated RF switch from Vishay Intertechnologies or other manufacturers.
To prevent latch-up in the DG506BEQ-T1-GE3, it is recommended to follow proper PCB design and layout guidelines, such as separating analog and digital signals, using guard rings, and minimizing parasitic capacitance and inductance. Additionally, the device should be operated within the specified voltage and current ranges.
The DG506BEQ-T1-GE3 is an industrial-grade device, but it is not specifically designed for automotive applications. For automotive applications, it is recommended to use AEC-Q100 qualified devices from Vishay Intertechnologies or other manufacturers that meet the required automotive standards and specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG506BEQ-T1-GE3 Overview

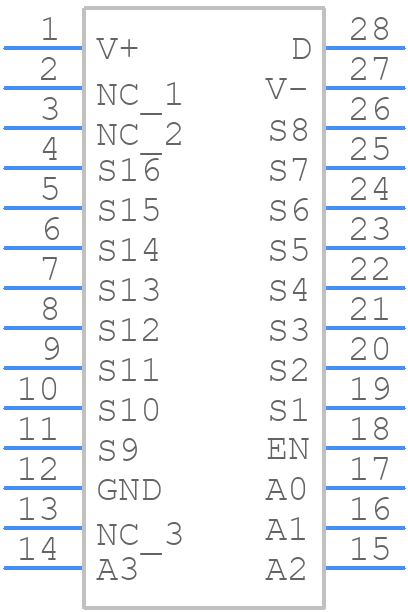

Use the download button to access the DG506BEQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG506,
or try a keyword search, such as Multiplexers or Switches
