The recommended PCB footprint for the DG507BEQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN42171, which provides a detailed layout and land pattern recommendation for optimal performance and reliability.
To handle the ESD sensitivity of the DG507BEQ-T1-GE3, it is recommended to follow standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, ensure that the device is stored in its original packaging or an ESD-safe container when not in use.
The maximum operating temperature range for the DG507BEQ-T1-GE3 is -40°C to +125°C, as specified in the datasheet. However, it is recommended to derate the device's performance and power handling at extreme temperatures to ensure reliable operation.
The DG507BEQ-T1-GE3 is a commercial-grade device, but Vishay Intertechnologies offers a range of high-reliability and aerospace-grade versions of the device, such as the DG507BEQ-T1-GE3HL or DG507BEQ-T1-GE3AQ, which meet specific industry standards and requirements. Contact Vishay Intertechnologies for more information on these variants.
To ensure proper soldering and assembly of the DG507BEQ-T1-GE3, follow the recommended soldering profile and assembly guidelines provided in the Vishay Intertechnologies' application note AN42171. Additionally, ensure that the PCB is designed with adequate thermal relief and clearance to prevent overheating during soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG507BEQ-T1-GE3 Overview

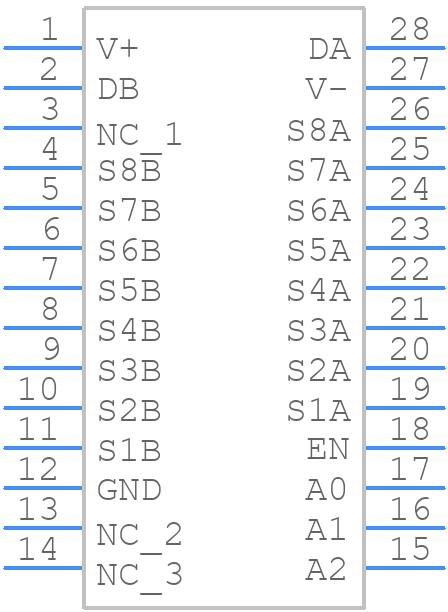

Use the download button to access the DG507BEQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG507,
or try a keyword search, such as Multiplexers or Switches
